| Usage: | Multi-axis Force Measurement | Type: | 3 Axis Load Cell |
|---|---|---|---|
| Force Range: | 10lbs 20 Lb 50lbf 100 Lb 200lb | Output: | Analog Sensor |
| Load Direction: | Fx/Fy/Fz |

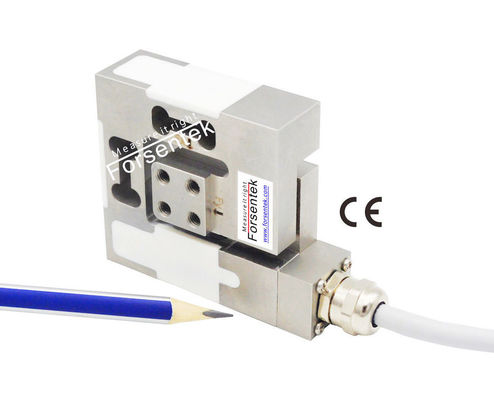

Multi Axis Force Sensor 200lb 100lb 50lb 20lb 10 lbs 3-Axis Load Cell
Multi Axis Load Cell F3G is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction with 0-4.5 lb / 0-6.7lb / 0-11lb / 0-22 lb / 0-45lb / 0-67lb / 0-112 lb / 0-225lb eight measuring ranges to choose from.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this 3-Axis Force Sensor F3G are for example force exertion control in robotics, force simulators, automotive testing & controlling, industrial test benches, grinding force control, actuator operating force measurement and so on.
Ordering code of 3-axis load cell F3G
|
Ordering code |
Capacity | Material | |
| Fx=Fy | Fz | ||
| F3G-20N | 20N | 20N |
Aluminum alloy |
| F3G-20-20-30 | 30N | ||
| F3G-30N | 30N | 30N | |
| F3G-30-30-50 | 50N | ||
| F3G-50N | 50N | 50N | |
| F3G-50-50-100 | 100N | ||
| F3G-100N | 100N | 100N |
Stainless steel |
| F3G-100-100-200 | 200N | ||
| F3G-200N | 200N | 200N | |
| F3G-200-200-300 | 300N | ||
| F3G-300N | 300N | 300N | |
| F3G-300-300-500 | 500N | ||
| F3G-500N | 500N | 500N | |
| F3G-500-500-1k | 1kN | ||
| F3G-1kN | 1kN | 1kN | |
Specifications
| Rated Capacity |
20N / 2kgf / 4.5lbf 30N / 3kgf / 6.7 lb 50N / 5kgf / 11 lb 100N / 10kgf / 22lb 200N / 20kgf / 45 lb 300N / 30kgf / 67 lb 500N / 50kgf / 112lb 1000N / 100kgf / 225lb |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.2% of the capacity |
| Hysteresis | ±0.2% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(5min) | ±0.05% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element |
<100N Aluminum alloy >50N Stainless steel |
| Cable |
Ø6*3000mm 12-wire shielded cable |
| Wiring code |
4-wire connection for each axis |
Multi-axis force sensor F3G consists of 3 wheatstone full bridges,one in each channel to deliver mV/V output proportional to the applied force,the output range of F3G is normally within -15mV...+15mV, multi-channel load cell amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA for easy signal processing.Taking F3G-500N and LC3A(-5-5V)-24V for example,the force-voltage relationship will be 0-500N load in Fx+/Fy+/Fz+ direction VS 0-5V output, 0-500N in Fx-/Fy-/Fz- direction VS 0-(-5V) output.
Multi Axis Load Cell 200lb 100lb 50lb 20lb 10 lbs 3-Axis Force Sensor
Click here to download datasheet
