Usage: Force Measurement Type: Micro Force Sensor
Structure: Miniature S Beam Load Cell Capacity: 10N 20N 50N 100N 200N
Force Direction: Tension And Compression Connection: M2 Threaded Hole
Output: Analog Sensor

Micro Force Transducer 10N 20N 50N 100N 200N Miniature Tension Compression Load Cell

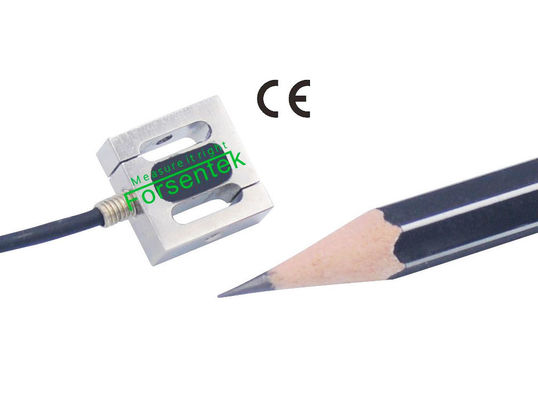

Miniature Force Sensor FSSQ offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and 5 capacity ranges 10N / 20N / 50N / 100N / 200N to choose from.The jr s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity,the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The Micro Force Transducer FSSQ features M2 threaded holes on two sides for the mounting of attachments or implements for both tension and compression force measurement in applications with limited space.

miniature force transducer 50N 100N 200N



Dimensions(unit in "mm")

smallest s type load cell 5kg 10kg 20kg

Ordering code Measurement Range Force direction
FSSQ-10N 0-10N / 0-1kgf Tension/Compression
FSSQ-20N 0-20N / 0-2kgf
FSSQ--50N 0-50N / 0-5kgf
FSSQ-100N 0-100N / 0-10kgf
FSSQ-200N 0-200N / 0-20kgf



Capacity 10N / 1kg / 2.2 lbf
20N / 2kg / 4.4 lbf
50N / 5kg / 11 lb
100N / 10kg / 22 lbf
200N / 20kg / 45 lbf
Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Miniature Force Transducer FSSM outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSQ-50N and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-50N compression load VS 0-5V output, 0-50N tension load VS 0-(-5V) output, 5V voltage corresponds to 50N compression load, -1V voltage corresponds to 10N tension force,and so on.
