| Usage: | Tension Compression Force Measurement | Type: | Universal S Beam Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 25kg~10ton(50lb~20klb) |
| Material: | Stainless Steel |

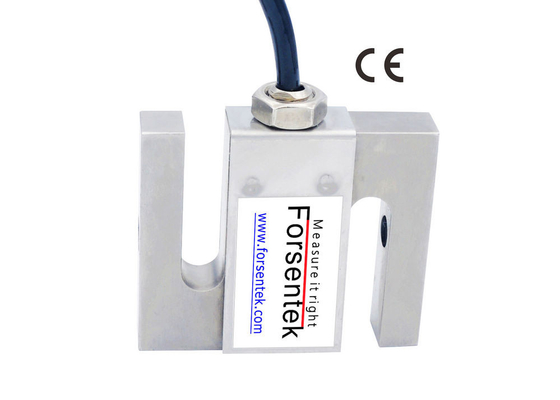

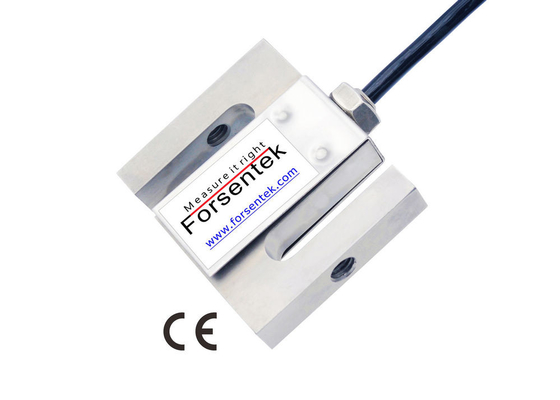

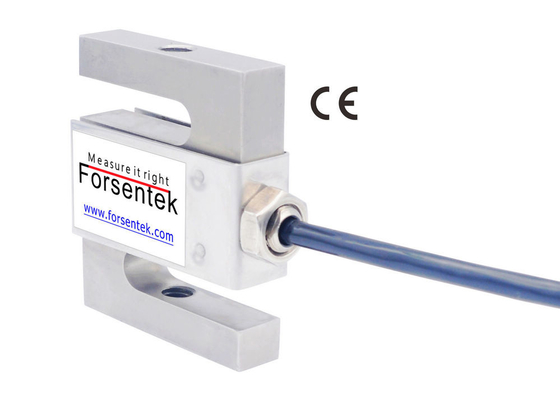

Tesnion/Compression S Type Load Cell 50lb 100lb 200lb 500lb 1klb 2klb 5klb 10klb 20klb
Stainless steel S Type Load Cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for both tension and compression force measurement, Model FSRG offers 50lb / 100lb / 150lb / 200lb / 250lb / 300lb / 500lb / 1klb / 1.5klb / 2klb / 2.5klb / 3klb / 5klb / 10klb / 15klb / 20klb sixteen rated capacities to choose from. High accuracy with maximum 0.02% non-linearity of the full scale. Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available. S-beam Force Sensor FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find transducer FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, Rice Lake RL20000ST, ptglobal PT4000, Rice Lake RL20000SS, VPG Sensortronics 60050 with lower cost but uncompromised quality.

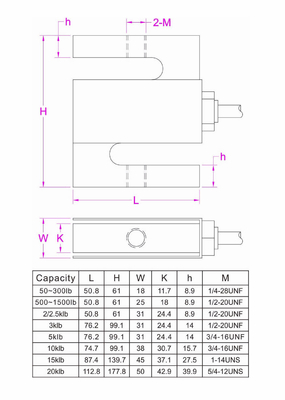

Dimensions(in milimeter)
Specifications
| Capacity |
50lb / 100 lb / 150lb / 200lb / 250 lb / 300lb / 500lb / 1klb / 1.5klb / 2k lb / 2.5klb / 3klb / 5k lb / 10k lb / 15klb / 20klb |
| Rated output | 3.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.02% R.O. |
| Hysteresis | ±0.02% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.02% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 250% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 430±60 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP67 |
| Material of element | Stainless steel |
| Cable |
Ø5*6000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- |

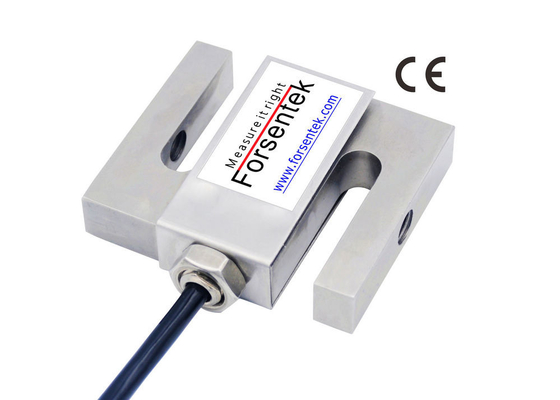

Stainless S Type Load Cell 50lb 100lb 200lb 300lb 500lb 1klb 2klb 3klb 5klb 10klb 20klb
