| Usage: | Compression Tension Force Measurement | Type: | S Type Tension Compression Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Connection: | M8/M12 Threaded Hole |
| Load Direction: | Tension And Compression | Capacity: | 5kg 10kg 20kg 30kg 50kg 100kg 200kg 300kg |
M8/M12 Threaded Tension And Compression Load Cell 200kg 100kg 50kg 30kg 20kg 10kg 5kg

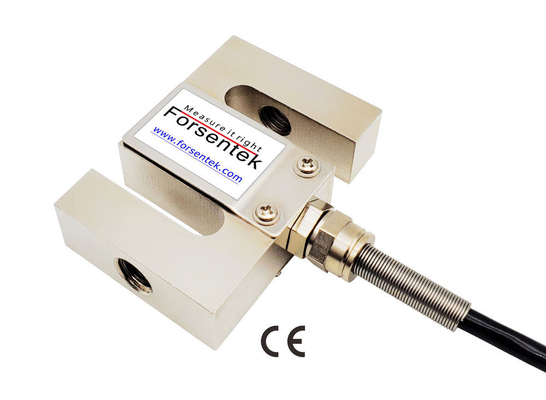

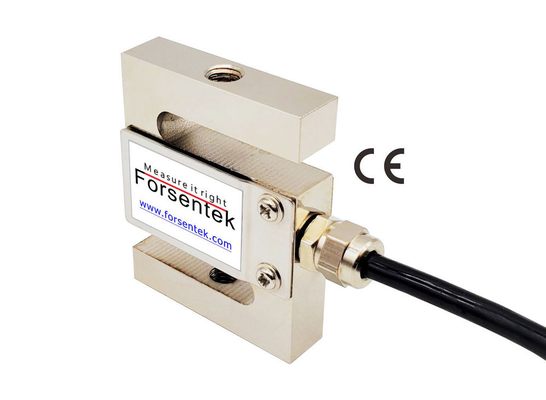

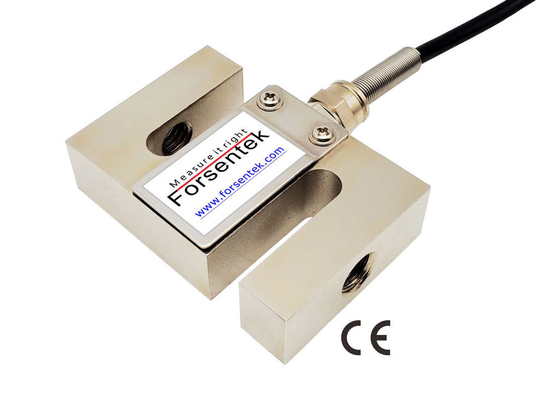

Universal s-beam Tension Compression Force Sensor FS6A/FS6B is strain gauge based intended for tension and compression force measurement. S Type Load Cell FS6A/FS6B offers 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg / 0-100kg / 0-200kg / 0-300kg eight rated measuring ranges to choose from. M8/M12 metric threaded holes located on both ends can be used to mount attachments such as eye bolts and hooks for adapt to different cases. S type force transducer FS6A/FS6B offers an accurate and affordable measuring solution for applications such as material testing machines, hanging scales, hopper weighing, automation equipment and so on.

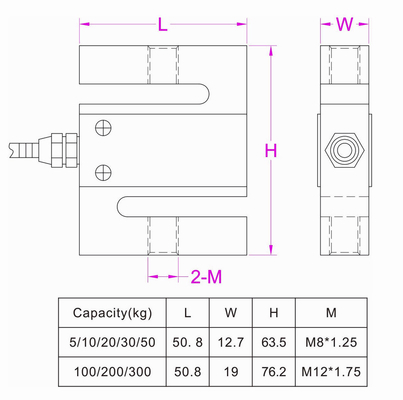

Dimensions
Specifications
| Capacity | 5kg / 50N / 11 lb 10kg / 100N / 22lbf 20kg / 200N / 44lb 30kg / 300N / 66 lbf 50kg / 500N / 110lbf 100kg / 1kN / 220 lb 200kg / 2kN / 440lbf 300kg / 3kN / 660 lb |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.05% R.O. |
| Hysteresis | ±0.05% R.O. |
| Nonrepeatability | ±0.03% R.O. |
| Creep(5min) | ±0.03% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 385±50 ohms |
| Output resistance | 380±30 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.5*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- |
M8/M12 Threaded Tension Compression Load Cell 300kg 200kg 100kg 50kg 30kg 20kg 10kg 5kg
