M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg

M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg

M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg
M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg

Large Image :  M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FSKA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2960pcs/month
Detailed Product Description
Usage: Force Measurement Type: Miniature Load Cell Tension Compression
Output: Analog Sensor Capacity: 10kg 20kg 50kg 100kg 200kg
Material: Stainless Steel Connection: M8 Threaded Hole

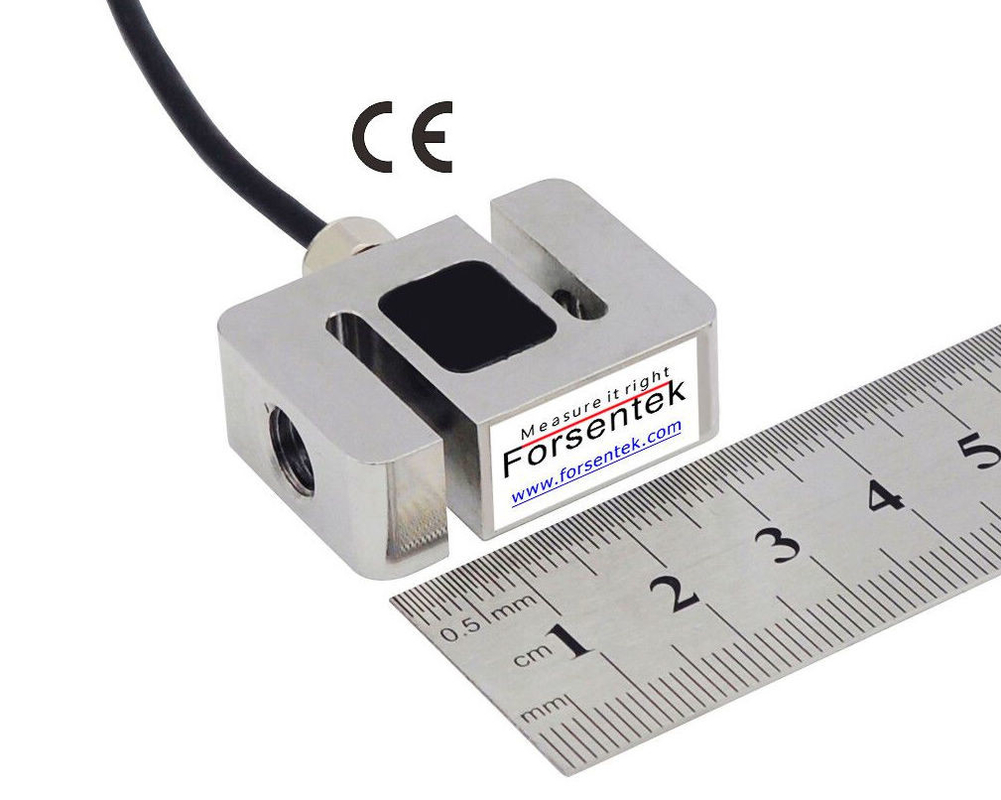

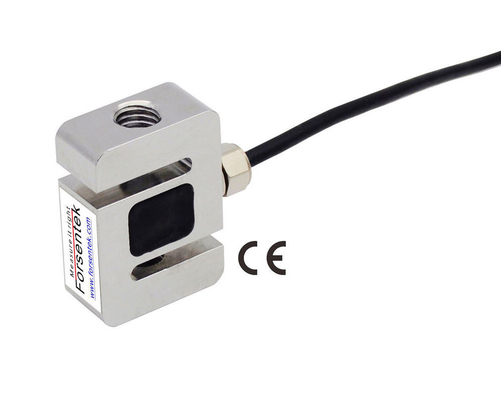

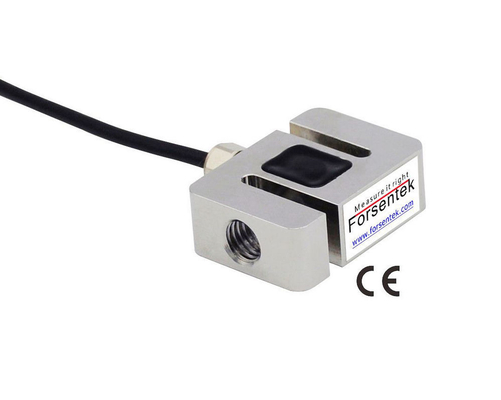

M8 threaded Miniature Tension Compression Load Cell 200kg 100kg 50kg 20kg 10kg

Miniature S-beam Tension Compression Load Cell FSKA is made of stainless steel based on metal foil strain gauge technology intended for both tension and compression force measurement. Miniature Force Sensor FSKA offers 10kg / 20kg / 50kg / 100kg / 200kg five rated capacities with maximum 0.1% non-linearity of the full scale. M8 threaded holes located on both ends can be used to mount attachments like load button, eye bolts, hooks to fit different applications. 35x25x12mm compact design makes force transducer FSKA a perfect option for force measurement applications with limited mounting space.Model FSKA can also be modified or customized as per request.

miniature tension load cell 200kg 100kg 50kg 20kg 10kg

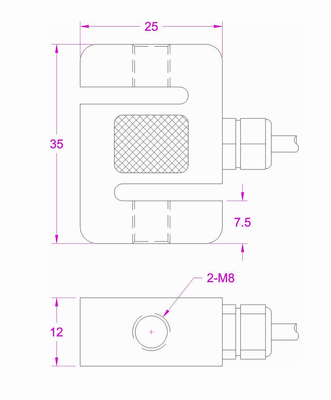

Dimensions

miniature s beam load cell 200kg 100kg 50kg 20kg 10kg

Specifications

Capacity

100N / 10kg / 22 lbf

200N / 20kg / 45lbf

500N / 50kg / 112lb

1kN / 100kg / 225lb

2kN / 200kg / 450lbf

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% of R.O.
Hysteresis ±0.1% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(5min) ±0.05% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 380±30 ohms
Output resistance 355±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø3*2000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Miniature Tension And Compression Load Cell 200kg 100kg 50kg 20kg 10kg

miniature s-type load cell 200kg 100kg 50kg 20kg 10kg

A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: S beam load cell FSKA-1000N with 2.0mV/V sensitivity powered by 3.3V DC,the output range is -6.6mV...+6.6mV(Tension and compression).
Example two: Tension Compression Load Cell FSKA-500N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV(Tension and compression).

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example: FSKA-500N working with -5-5V amplifier,the Force-Voltage relationship will be 0-500N compression load VS 0-5V output, 0-500N tension load VS 0-(-5V) output,when you get 1V output,it means the current load is 100N compression force,when you get -2V output,it means the current load is 200N tension force,and so on.

Click here to download datasheet
