| Usage: | Torque Measurement | Style: | Thru Hole |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Stationary Type |
| Structure: | Flange To Flange |

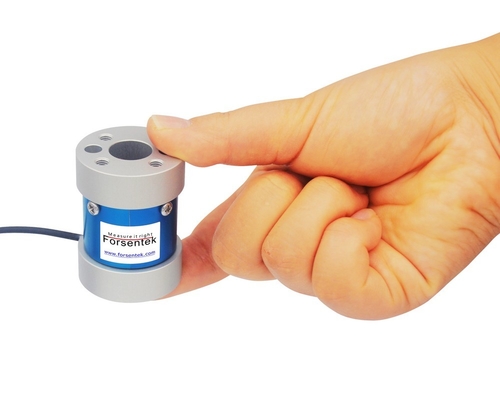

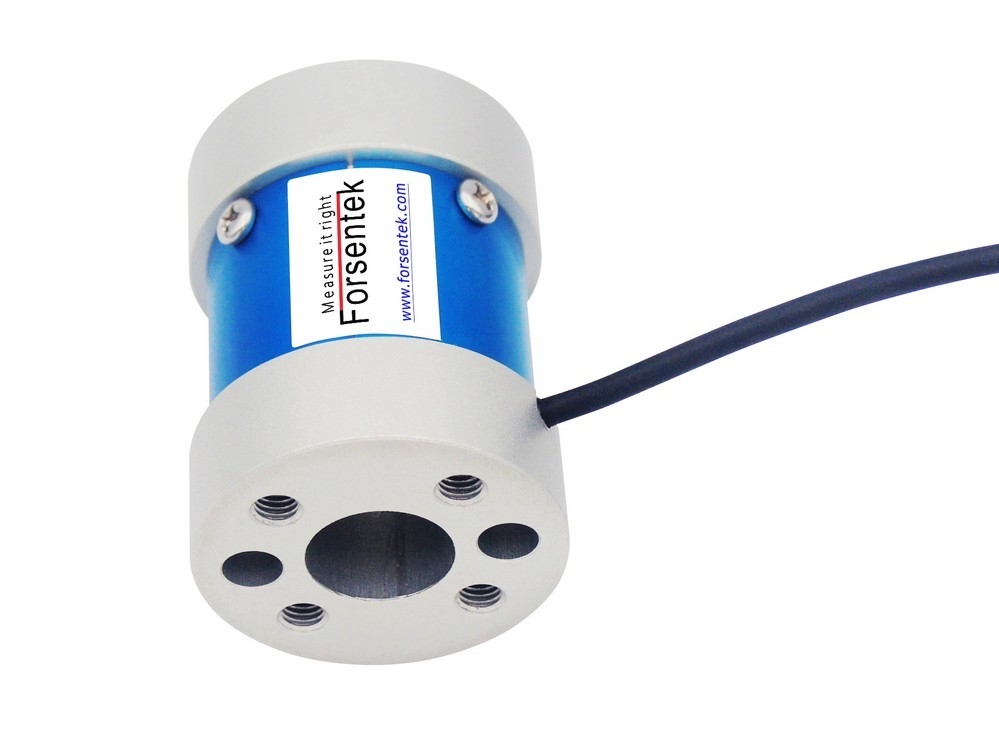

Flange-to-flange Reaction Torque Sensor FT01 Miniature Torque Transducer
Miniature flange type torque transducer FT01 is strain gauge based intended for reaction torque measurement in both clockwise and anticlockwise direction. Miniature torque sensor FT01 offers 1NM / 2NM / 5NM / 10NM / 20N-m / 30NM / 50NM / 100NM / 150N-m nine rated capacities to choose from,high accracy with maximum 0.3% non-linearity of the full scale.End flanges located on both sides of the torque transducer can be used for bolting between shaft or mounting plates, very compact size makes torque cell FT01 suitable for torque measurement where mounting space is limited. Reaction torque transducer FT01 can be modified or customized as per client's request to meet requirements of different applications.

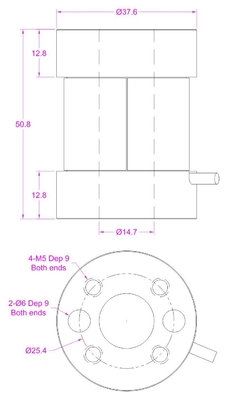

Dimensions(unit in "mm")
Specifications
| Capacity |
1NM / 8.8 lb-in 2NM / 17.7 lbf*in 5NM / 44 lbf-in 10NM / 88 lb*in 20NM / 177 lb-in 30NM / 265 lbf-in 50NM / 442 lbf*in 100NM / 885 lb*in 150NM / 1300 lb-in |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.02% R.O./oC |
| Temp. shift span | ±0.02% R.O./oC |
| Input resistance | 410±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element |
0-100Nm @ Aluminum alloy 150Nm @ Alloy steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

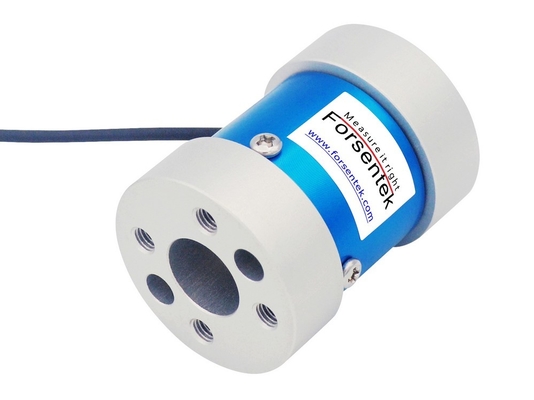

Flange-to-flange Reaction Torque Sensor FT01 Miniature Torque Transducer
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example: 2.0mV/V torque sensor with 10V power supply,the output range is -20mV...+20mV.
