| Usage: | Rotating Torque Measurement | Type: | Contactless Torque Sensor |
|---|---|---|---|
| Output: | ±5V/±10V/4-20mA | Torque Measurement Direction: | Clockwise&Anti-clockwise |
| Capacity: | 0-500NM(Selectable) |

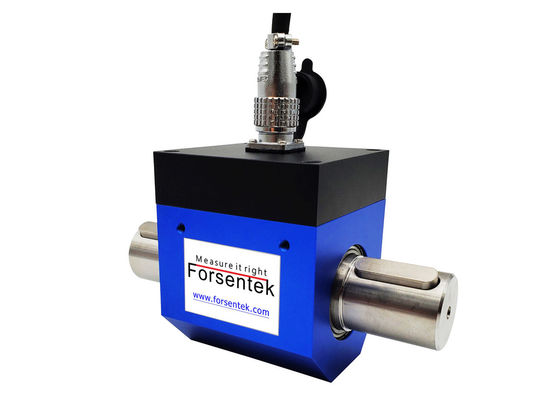

Contactless rotary torque transducer -5-5V 0-10V 4-20mA torque speed sensor
Non contact rotary shaft torque sensor FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 1NM / 2NM / 3NM / 5NM / 10NM / 20NM / 30NM / 50NM / 100NM / 200NM / 300NM / 500NM 12 measuring ranges with maximum 8000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for rotary torque transducer FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.
Dimensions
Specifications
| Capacity |
1N*M / 8.8 lb-in / 0.74 lb-ft 2NM / 17.7 lbf*in / 1.5 lbf-ft 3N-M / 36.5 lb*in / 2.2 lbf*ft 5NM / 44lb-in / 3.7lbf*ft 10Nm / 88 lbf*in / 7.4 lb-ft 20N-M / 177 lb*in / 15 lbf-ft 30N*M / 265lb*in / 22 lbf*ft 50NM / 442 lbf-in / 37 lb*ft 100N*M / 885 lbf*in / 74lb*ft 200NM / 1770 lb-in / 147 lb-ft 300N*M / 2655 lb*in / 221 lbf-ft 500Nm / 4425 lb-in / 368 lbf*ft |
| Max rotating speed |
0-100Nm: 8000RPM 200/300/500Nm: 6000RPM |
| Rated output | ±5V / ±10V / 4-20mA |
| Excitation | 24V DC (or 12V DC) |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Operating temp. | -10...+60oC |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Material of housing | Aluminum |
| Cable | Ø6*3000mm(Mating connector provided) |
