| Usage: | Load Cell For Force Gauges | Type: | Tension Sensor |
|---|---|---|---|
| Output: | Analog Transducer | Load Direction: | Tension And Compression |
| Capacity: | 10N/20N/50N/100N/200N/500N | Connection: | M5 Threaded Hole |

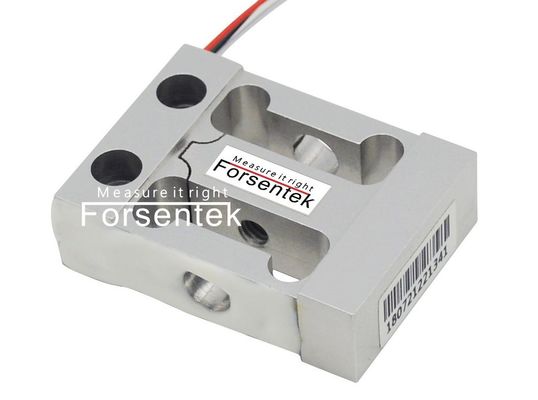

High accuracy load cell for medical infusion bag weighing sensor
Side mounted high accuracy load cell FS12 is strain gauge based to deliver maximum 0.05% non-linearity of the rated output,force sensor FS12 only weighs about 35g thanks to its aluminum construction.Model FS12 offers 10N / 20N / 50N / 100N / 200N / 500N six different measuring ranges to choose from,it can be used for both tension and compression force measurement,the compact design enables the FS12 to be easily embedded into machinery or test equipment.You may find model FS12 applicable for force gauges,medical infusion bag weighing,etc..
Specifications
| Capacity | 10N 20N 50N 100N 200N 500N |
| Rated output | 1.0±10%mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.05% R.O. |
| Hysteresis | ±0.05% R.O. |
| Nonrepeatability | ±0.02% R.O. |
| Creep(5min) | ±0.03% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 395±20 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | AWG32*180mm |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Medical infusion bag weighing load cell 10N 20N 50N 100N 200N 500N
Dimensions(Unit in "mm")
