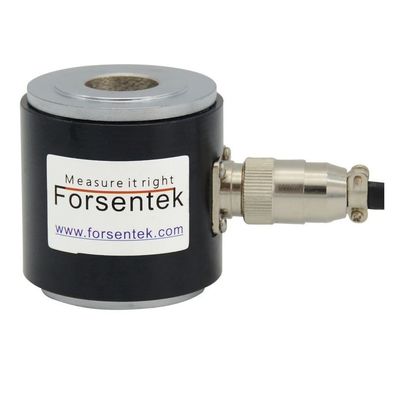

Through hole load cell donut load cell

China Through hole load cell donut load cell supplier
Through hole load cell donut load cell supplier Through hole load cell donut load cell supplier Through hole load cell donut load cell supplier Through hole load cell donut load cell supplier Through hole load cell donut load cell supplier Through hole load cell donut load cell supplier

Large Image :  Through hole load cell donut load cell

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FDDW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Usage: Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 120KN 180KN 220KN 260KN 330KN 400KN 500KN

Through hole load cell donut load cell

load cell pdf

annular load cell

Features

  • Donut load cell,through hole structure
  • Alloy steel construction,analog output
  • Press-in force measurement,anchor force measurement,injection force measurement.etc..
  • Customizable

donut load cell

Dimensions

through hole load cell force sensor

through hole load cell

Specifications

Capacity 120KN 180KN 220KN 260KN 330KN 400KN 500KN
Rated output 2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.1% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 730±50 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Alloy steel
Cable Ø4.8*2000mm
Wiring code

Red--Exc+ Green--Exc-

Yellow--Sig+ White--Sig-

Through hole load cell Donut load cell

thru hole load cell

washer load cell

washer type load cell
