Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN

Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN

Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN
Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN

Large Image :  Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FDBH
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3399pcs/month
Detailed Product Description
Usage: Clamping Force Measurement Structure: Hollow Type
Output: Analog Transducer Capacity: 5/10/20/30/50KN
Material: Stainless Steel Connnection: M30 Threaded Hole

Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN

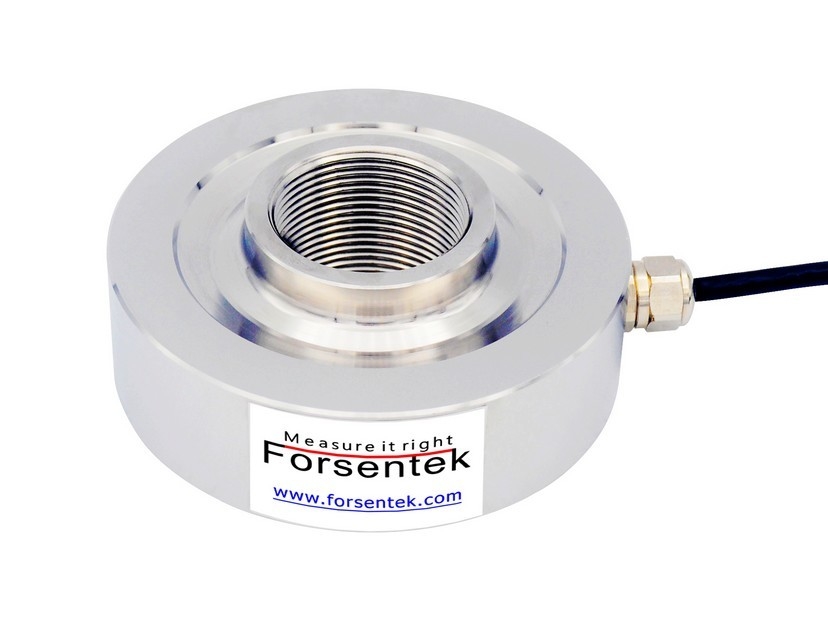

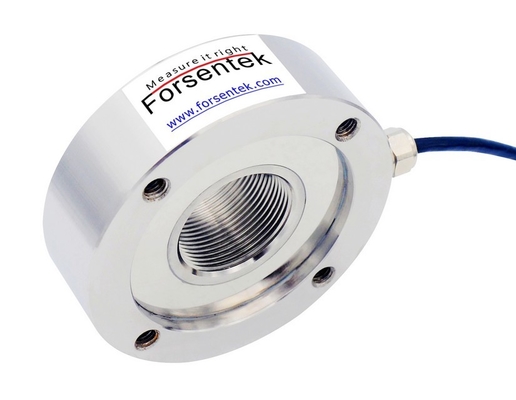

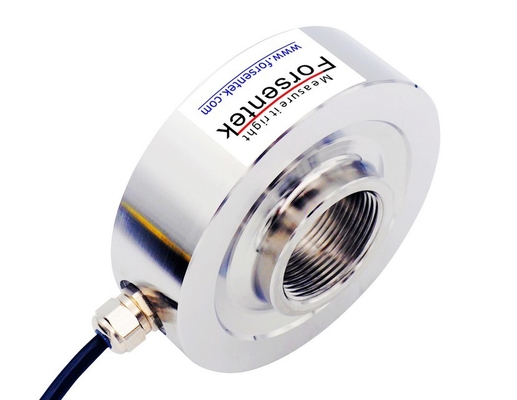

Hollow Through Hole Load Cell FDBH is made of stainless steel based on strain gauge technology to deliver maximum 0.5% non-linearity of the rated capacity intended for both traction and compression force measurement. Washer Load Cell FDBH offers 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN five rated measuring ranges to choose from. Hollow type load cell FDBH features a M30 threaded hole located at the center of the transducer, which offers following two mounting methods:

  • Load structure passes through the sensor to measure compression force
  • Load structure connects with the M30 threaded hole to measure compression/tension force

Donut type force sensor FDBH is very suitable for clamping/fastening force measurement, to meet requirements of different applications, model FDBH can also be modified or customized.

5kN_Washer_Load_Cell_10kN

Dimensions

Hollow_Load_Cell_With_M30_Threaded_Hole

Ordering code Measurement Range Force direction
FDBH-5kN 0-500kgf / 0-1100lbf
FDBH-10kN 0-1000kgf / 0-2200lbf

Tension

and

Compression

FDBH-20kN 0-2000kgf / 0-4500lbf
FDBH-30kN 0-3000kgf / 0-6700lbs
FDBH-50kN 0-5000kgf / 0-11200lbf

Specifications

Capacity

5kN / 10kN / 20kN / 30kN / 50kN

1.1klb / 2.2klb / 4.5klb / 6.7klbs / 11.2klbf

500kg / 1ton / 2 ton / 3 ton / 5ton

Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+     White--Signal-



Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN

20kN_Washer_Load_Cell_50kN

Output signal of load cell FDBH:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Hollow Load Cell FDBH is normally around 1.5mV/V.
Power supply of Washer Type Force Sensor FDBH is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBH is normally within 0…+22.5mV.

Example one: Through Hole Load Cell FDBH-50kN with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Hollow Type Load Cell FDBH-10kN with 1.5mV/V rated output powered by 5V DC,the output range is 0mV...+7.5mV.

5kN_Through-hole_Load_Cell_10kN

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example: Washer  Type Load Cell FDBH-10kN working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10kN compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1kN load, 2V output corresponds to 2kN force, and so on.

Thru-hole Loadcell FDBH can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Washer Load Cell 5kN 10kN Through Hole Force Transducer 20kN 30kN 50kN

50kN_Through-hole_Load_Cell_30kN


Click here to download datasheet
