3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor

Good quality Rotary torque sensor for sales
Good quality Rotary torque sensor for sales
I'm Online Chat Now

3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor

China 3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier
3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier 3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier 3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier 3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier 3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier 3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor supplier

Large Image :  3 axis load cell 50kg 100kg 200kg 300kg 500kg Multi-axis force sensor

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: XYZ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 6-8 weeks
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Usage: 3 Axis Force Measurement Theory: Strain Gauge Force Sensor
Output: Analog Sensor Load Direction: X/Y/Z Three-directional

3 axis load cell 50kg 100kg 200kg 300kg 500kg

Multi-axis force sensor

3 axis load cell 50kg 100kg 200kg 300kg 500kg
Features

  • Compact design,low profile
  • 3-axis force measurement
  • Strain gauge technology,analog output
  • Competitive price

multi axis load cell 500kg 200kg 100kg 50kg
Specifications

Rated Capacity

 X/Y-50kg 60kg 100kg 150kg 200kg 300kg

Z-50kg 60kg 100kg 150kg 200kg 300kg 500kg

Sensitivity1.0mV/V
Excitation3-12V
Zero balance±0.1mV/V
Non-linearity±0.3% R.O.
Hysteresis±0.3% R.O.
Non-repeatability±0.2% R.O.
Creep(30min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature0...+40oC
Operating temperature-20...+60oC
Temperature shift on zero±0.05% R.O./oC
Temperature shift on span±0.01% R.O./oC
Input resistance780±100 ohms
Output resistance700±100 ohms
Insulation resistance>2000M ohms
Ingress protectionIP62
Material of elementAluminum alloy
CableØ6.7*3000mm 12-core
Wiring code

4-wire connection for each axis


Multi axis load cell XYZ for 3-axis force measurement
3 axis force sensor 5KN 2KN 1KN 500N
multi axis force sensor 5KN 2KN 1KN 500N

3 axis load cell XYZ is featured with low profile design to measure X/Y/Z 3-axis force at the same time.Aluminum construction, compact size, light weight, competitive price. Suitable for test benches,force experiments and other force measurements where more than one directional force is involved.
3 axis force measurement 1KN 2KN 5KN

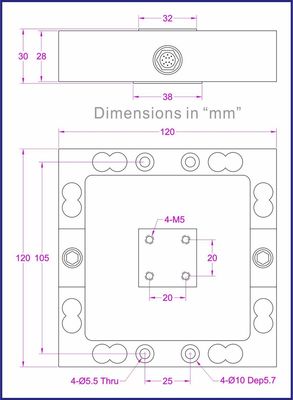

Dimensions(Unit in "mm)

multi axis load cell 500N 1KN 2KN 3KN 5KN

3 axis load cell datasheet
