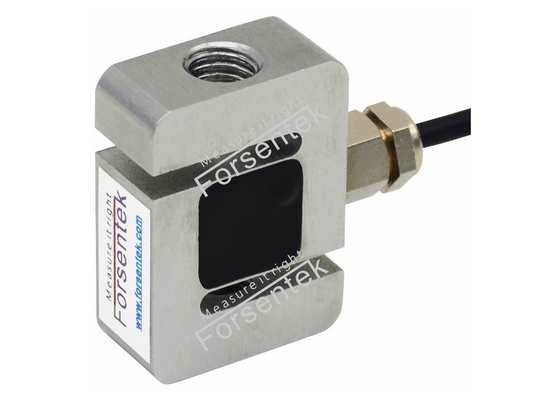

S type load cell 50N 100N 200N 500N tension compression load cell

S type load cell 50N 100N 200N 500N tension compression load cell

S type load cell 50N 100N 200N 500N tension compression load cell
S type load cell 50N 100N 200N 500N tension compression load cell S type load cell 50N 100N 200N 500N tension compression load cell S type load cell 50N 100N 200N 500N tension compression load cell

Large Image :  S type load cell 50N 100N 200N 500N tension compression load cell Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FSSK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Usage: Tension Compression Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 500N 200N 100N 50N
Material: Stainless Steel

S type load cell 50N 100N 200N 500N

tension compression load cell

 S type load cell
Features

  • S beam load cell force sensor,made of stainless steel
  • Strain gauge based,high accuracy
  • Tension and compression force measurement

Specifications

Capacity 50N 100N 200N 500N
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*4000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

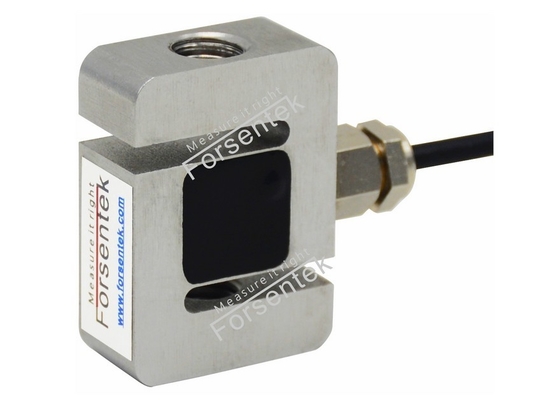

S beam load cell for tension compression force measurement

s beam load cell

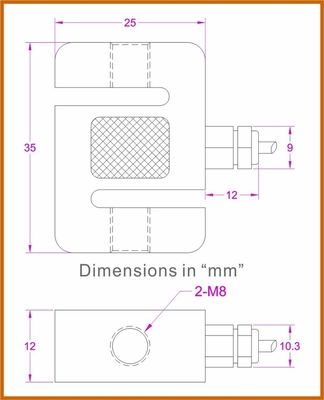

 270Dimensions(Unit in "mm")

s type load cell 50N 100N 200N 500N
Ordering Code: FSSK-50N, FSSK-100N, FSSK-200N, FSSK-500N
