Miniature force transducer 2KN 1KN 500N tension compression load cell

China Miniature force transducer 2KN 1KN 500N tension compression load cell supplier
Miniature force transducer 2KN 1KN 500N tension compression load cell supplier Miniature force transducer 2KN 1KN 500N tension compression load cell supplier

Large Image :  Miniature force transducer 2KN 1KN 500N tension compression load cell

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FSSG

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Usage: Tension Compression Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 500N 1KN 2KN
Material: Stainless Steel

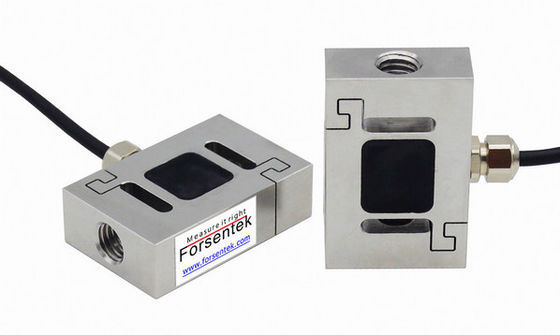

Miniature force transducer 2KN 1KN 500N tension compression load cell

Miniature force transducer FSSG offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features.The small s-beam load cell FSSG utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the rated output,the compact design enables the FSSG to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. The sensor features M8 threaded holes on two sides for the mounting of attachments or implements, this micro force sensor can be used for both tension and compression force measurement in applications with limited space.Small size tension load cell FSSG is widely used for force gauges, tension meters, switch insertion force measurement, keyboard testing, spring testing, syringe testing, touchpad testing, cylinder thrust measurement and so on.S type load cell FSSG offers 500N / 1000N / 2000N three different measuring ranges to choose from,besides the standard specifications,model FSSG can also be modified or customized according to clients' requirements.


miniature force transducer

Specifications

Capacity 500N 1kN 2kN
(50kgf 100kgf 200kgf)
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% of R.O.
Hysteresis ±0.2% of R.O.
Nonrepeatability ±0.1% of R.O.
Creep(5min) ±0.05% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 380±30 ohms
Output resistance 355±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*4000mm
Wiring code Compression@
Red--E+ Black--E- Green--S+ White--S-



Dimensions(Unit in milimeter)

miniature force transducer 2kN 1kN 500N

s beam force transducer pdf
