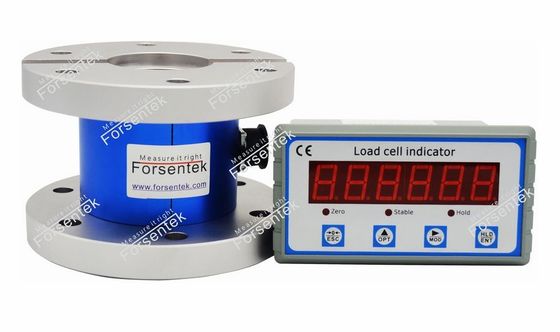

Large Image :  500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FTF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Usage: Torque Measurement Theory: Strain Gauge Torque Sensor
Output: Analog Sensor Capacity: 100NM-1000NM

500 Nm torque sensor 300 Nm torque transducer 200 Nm torque measurement 100 Nm

torque transducer 100 nm

500 nm torque sensor


Features

  • Flange to flange mounting,thru hole structure
  • Strain gauge based,analog output
  • 6-wire connection as stardard,4-wire connection also available
  • Reaction torque measurement
  • Customizable

torque sensor 100NM 200NM 300N 500NM 1000NM
Parameters

Rated capacity

100NM 200NM 300NM

500NM 700NM 1000NM

Rated output 1.0mV/V
Excitation 3-15V
Zero balance ±3% F.S.
Non-linearity ±0.2% F.S.
Hysteresis ±0.2% F.S.
Non-repeatability ±0.2% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.01% F.S./oC
Input resistance 700±50 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element <500NM Aluminum alloy
>300NM Stainless steel
Cable Ø5.8*4000mm 6-core shielded cable
Wiring code

Red--Exc+ Black--Exc-

Yellow--Sen+ Blue--Sen-

Green--Sig+ White--Sig-



Through hole torque sensor torque measurement unit

1000 lb-in torque sensor 200 IN-LB 500 in-lb

torque sensor



Torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque meter can be used to display the torque value.Digital indicator FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static and dynamic measurement.FPT also supports RS485/RS232 communication interface and  0-10V/0-5V/4-20mA amplified signal output which is proportional to the measured torque.

measure torque



Dimensions

through hole torque sensor

tff600 datasheet
