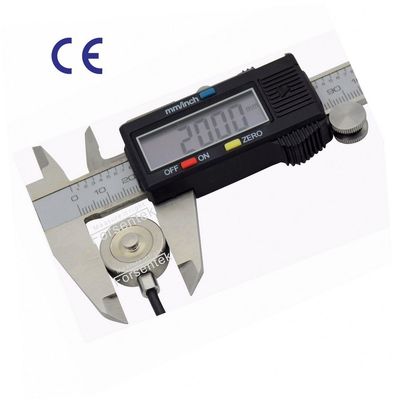

Button load cell miniature load cell sensor for compression force measurement

China Button load cell miniature load cell sensor for compression force measurement supplier
Button load cell miniature load cell sensor for compression force measurement supplier Button load cell miniature load cell sensor for compression force measurement supplier

Large Image :  Button load cell miniature load cell sensor for compression force measurement

Product Details:

Place of Origin: China
Brand Name: Forsentek

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Usage: Compression Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 50N 100N 200N 300N 500N 1KN 2KN 3KN 5KN 10KN

Button load cell miniature load cell sensor

tecsis load cell F1818

Features

  • Stainless steel construction
  • Miniature size button load cell
  • High output resistance,low heat emmision
  • Compression force measurement

Application

  • Clamping force measurement
  • Force overload protection
  • Load distribution measurement
  • Pressing die force measuring
  • Auto equipment
  • Medical divices
  • Assembly line

Specifications

Capacity 50N 100N 200N 300N 500N 1KN 2KN 3KN 5KN
Rated output 1.5mV/V
Excitation 3-10V
Zero balance ±0.1mV/V
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance >700 ohms
Output resistance >700 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*4000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-



Dimensions(Unit in "mm")

button load cell 50N 100N 200N 500N
