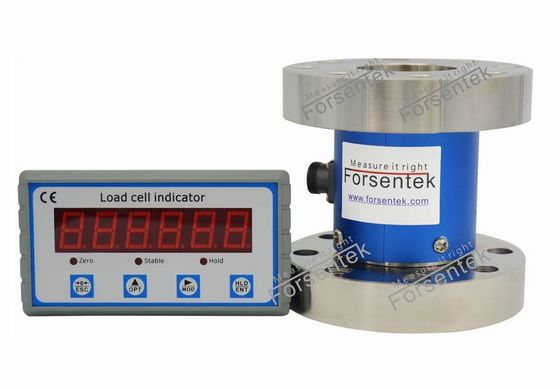

Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb

Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb
Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb

Large Image :  Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FT03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2550pcs/month
Contact Now
Detailed Product Description
Usage: Static Torque Measurement Theory: Stationary Torque Transducer
Output: Analog Sensor Torque Direction: Clockwise And CCW
Torque Range: 0-100kNm Mounting: Flange-to-flange

Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb

reaction torque sensor

Features

  • Alloy steel construction
  • Flange mounting,easy to install
  • Strain gauge technology,analog output
  • Non-rotating torque measurement

120klbf*in torque measurement 200klb-in

Dimensions

static torque trasnducer 1000NM

90klbf-in torque sensor 100klb-in



Specifications

Capacity

200NM 300NM 500NM 1000NM 2000NM 3000NM

5000NM 10000NM 20000NM 30000NM 40000NM

50000NM 60000NM 100000NM
Rated output 1.5mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.25% R.O.
Hysteresis ±0.25% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 700±100 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Alloy steel
Cable Ø5.5*3000mm 4-core shielded
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

Static torque sensor 90000 in-lb 50000 in-lb 30000 in-lb 20000 in-lb 10000 in-lb



70klb*in torque transducer 80klb-in

60klb-in measuring torque 50klbf*in

40klb-in torque sensor 30klb-in

30klb-in torque transducer 20klb-in

Click here to download datasheet
