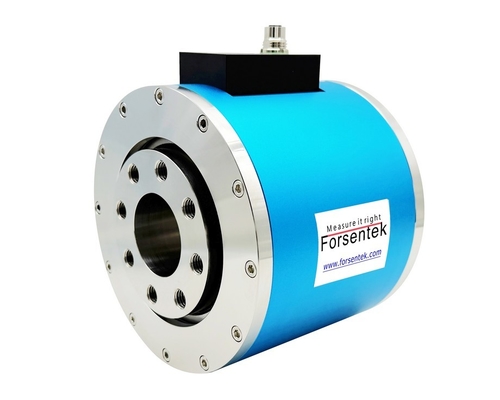

Good quality Rotary torque sensor for sales
Good quality Rotary torque sensor for sales
I'm Online Chat Now

Self-display load cell|Load cell with display

China Self-display load cell|Load cell with display supplier
Self-display load cell|Load cell with display supplier Self-display load cell|Load cell with display supplier Self-display load cell|Load cell with display supplier Self-display load cell|Load cell with display supplier Self-display load cell|Load cell with display supplier

Large Image :  Self-display load cell|Load cell with display

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FBCD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Usage: Weight Measurement,load Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor

Self-display load cell|Load cell with display

load cell with display

Features

  • Alloy steel construction,column type load cell
  • Stain gauge technology,high accuracy
  • Compression force measurement
  • Bulit-in display unit for real time weight monitoring
  • Widely used for hopper scales,helicopter scales,tank weighing systems,press machines,etc.

load cell with indicator

Dimensions(unit in "mm")

self-display load cell
load cell with display
 Specifications

Rated capacity 5KN 7KN 10KN 20KN 30KN 50KN 70KN
Rated output  2.0mV/V
Excitation  5-15V
Zero balance  ±2% of R.O.
Nonlinearity  ±0.05% of R.O.
Hysteresis  ±0.05% of R.O.
Nonrepeatability  ±0.05% of R.O.
Creep(30min)  ±0.05% of R.O.
Safe overload  150% of F.S.
Ultimate overload  200% of F.S.
Compensated temperature  -10...+40oC
Operating temperature  -20...+60oC
Temperature shift zero  ±0.05% R.O./10oC
Temperature shift span  ±0.05% R.O./10oC
Input resistance  380±30 ohms
Output resistance 350±5 ohms
Insulation resistance  >5000M ohms
Ingress protection  IP65
Material of element  Alloy steel
Cable  Ø5*3000mm(Longer cable available)
Wiring code

 Red--Exc+   Black--Exc-
 Green--Sig+ White--Sig-

Display unit

Display range 0~9999
Display accuracy 0.2% F.S.
Power Share power with load cell
Working temperature -10...+50oC


Self-display load cell with built-in indicator

load cell with indicator

column type load cell
