Usage: Tension And Compression Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 50KG 100KG 150KG

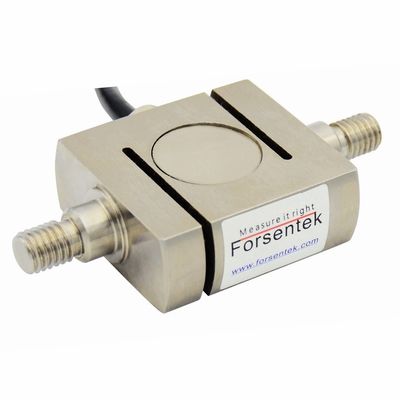

S beam load cell Rod end load cell

s beam load cell
Features

  • Rod end load cell,s beam structure
  • Strain gauge technology,analog output
  • Tension and compression force measurement
  • Widely used for testing machine,press force test,keyboard testing,auto equipment,production line,press machine.etc.

Dimensions(unit in "mm")
s type load cell

tension load cell
Specifications

Rated capacity  50kg 100kg 150kg
Rated output  2.0mV/V
Excitation  5-15V
Zero balance  ±2% of R.O.
Nonlinearity  ±0.05% of R.O.
Hysteresis  ±0.05% of R.O.
Nonrepeatability  ±0.03% of R.O.
Creep(30min)  ±0.03% of R.O.
Safe overload  150% of F.S.
Ultimate overload  200% of F.S.
Compensated temperature  -10...+40oC
Operating temperature  -20...+60oC
Temperature shift zero  ±0.03% R.O./10oC
Temperature shift span  ±0.03% R.O./10oC
Input resistance  380±30 ohms
Output resistance  350±5 ohms
Insulation resistance  >5000M ohms
Ingress protection  IP65
Material of element  Alloy steel
Cable  Ø5*2000mm(Longer cable available)
Wiring code

 Red--Exc+   Black--Exc-
 Green--Sig+ White--Sig-


rod end load cell

S beam load cell is known as s type load cell because of its feasured s beam structure,Rod end load cell FSSD is able to measure both tension force and compression force.The sensor can convert load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
