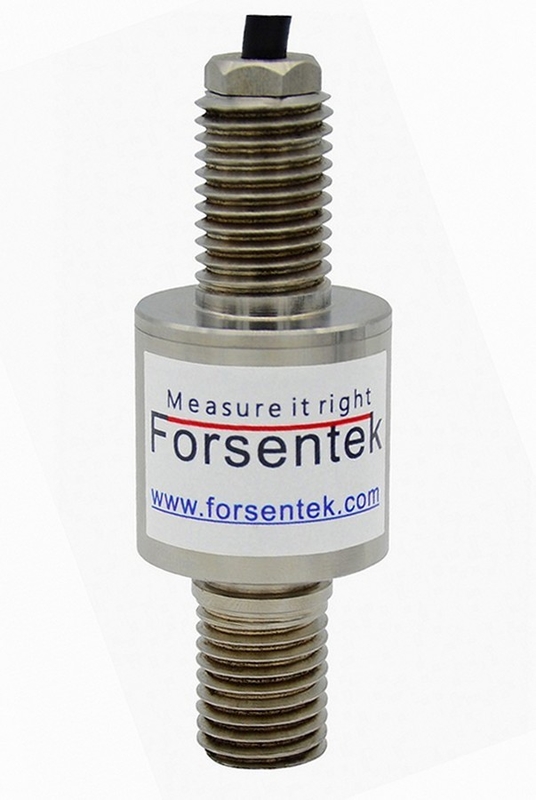

Rod end load cell tension and compression load cell

Rod end load cell tension and compression load cell

Rod end load cell tension and compression load cell
Rod end load cell tension and compression load cell Rod end load cell tension and compression load cell Rod end load cell tension and compression load cell Rod end load cell tension and compression load cell Rod end load cell tension and compression load cell

Large Image :  Rod end load cell tension and compression load cell Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FL30
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3000pcs/month
Detailed Product Description
Usage: Tension Compression Force Measurement Theory: Resistance Sensor
Output: Analog Sensor Load Direction: Tension And Compression
Capacity: 2KN/3KN/5KN/10KN/20KN

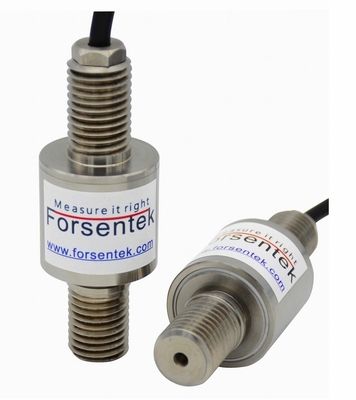

Rod end load cell tension and compression load cell

rod end load cell
Features

  • Stainless steel construction,in-line structure.
  • M16 threads on both sides,easy to install.
  • Tension force measurement
  • Compression force measurement

Applications

  • Axial force measurement
  • Air cylinder pull push force measurement
  • Welding force control
  • Testing machine
  • Assembly line

Specifications

Rated capacity 2KN 3KN 5KN 10KN 20KN
Rated output 1.5mV/V
Excitation 5-15V
Zero balance ±2% of R.O.
Nonlinearity ±1% of R.O.
Hysteresis ±1% of R.O.
Nonrepeatability ±0.3% of R.O.
Creep(30min) ±0.1% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø5*1800mm(Longer cable available)
Wiring code

Tension@ Red--Exc+   Black--Exc-
 Green--Sig+ White--Sig-

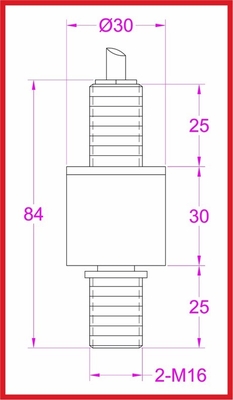

Dimensions
inline load cell
Ordering code: FL30-2KN, FL30-3KN, FL30-5KN, FL51-10KN, FL51-20KN
tension and compression load cell
