Rotating torque measurement device torque indicator

Good quality Rotary torque sensor for sales
Good quality Rotary torque sensor for sales
I'm Online Chat Now

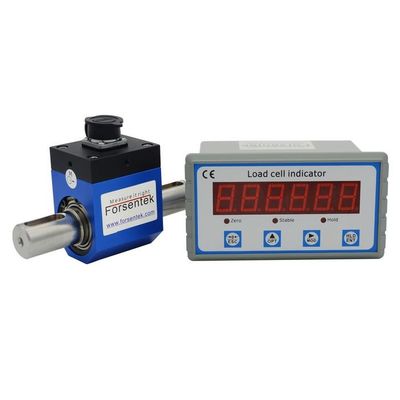

Rotating torque measurement device torque indicator

China Rotating torque measurement device torque indicator supplier
Rotating torque measurement device torque indicator supplier Rotating torque measurement device torque indicator supplier Rotating torque measurement device torque indicator supplier Rotating torque measurement device torque indicator supplier Rotating torque measurement device torque indicator supplier Rotating torque measurement device torque indicator supplier Rotating torque measurement device torque indicator supplier

Large Image :  Rotating torque measurement device torque indicator

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: Torque sensor FY01/Display FPT

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3-15 working days
Payment Terms: T/T,Western Union or Paypal in advance
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Usage: Rotaty Torque Measurement,torque Monitor

Rotating torque measurement device torque indicator

torque measurement device

Rotary torque sensor FY01

rotary torque sensor

Features

  • Strain gauge technology,analog output
  • Shaft to shaft structure,stainless steel measuring element
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotating shaft torque measurement,motor torque measuring



Dimensions

shaft torque measurement

torque measurement sensor

Specifications

Capacity 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Rated output 1.0-1.5mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø5.5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-



Torque indicator torque display FPT





torque monitor

Technical parameters

  • CE certified

  • Aluminum housing,compact size

  • 24 bit Sigma-Delta ADC,high accuracy

  • Power supply: 24V DC

  • Load cell excitation: 5V DC

  • Input range: -10mV~10mV

  • Load cell connection: 4-wire or 6-wire

  • Display range: -99999....999999

  • High sampling speed: 120Hz/480Hz/960Hz settable

  • Working temperature: -10...+40oC

  • Humidity: <90% RH without dew

  • Non-linearity: <0.01% F.S.

  • I/O: 1 input and 2 outputs

  • Communication interface: RS485 or RS232

  • Analog output: 0-5V/0-10V/0-20mA/4-20mA/User self-define

  • Zero tracking

  • Peak hold



Dimensions

torque indicator





Torque measurement can be done through torque sensor and torque meter,torque sensor can turn mechanical torque into analog signal which is proportional to applied torque,torque meter can display the torque value after calibrated with torque transducer.

torque indicator

torque measurement instrument

torque sensor certificate
