| Usage: | Torque Measurement Device | Theory: | Strain Gauge Torque Measurement Device |
|---|---|---|---|
| Output: | Analog Sensor |

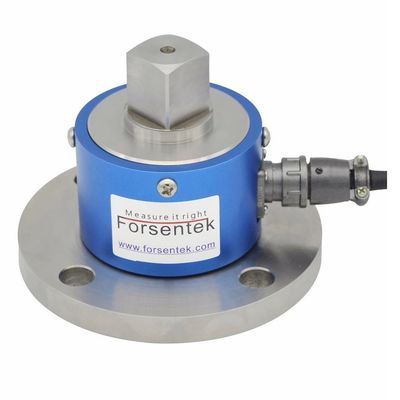

Torque measurement device torque transducers
Features
Dimensions
Specifications
| Capacity | 500NM 300NM 200NM 100NM 500NM 20NM |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable |
Ø5*3000mm 4-core shielded cable with mating connector |
| Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |
Torque measurement device torque transducer
