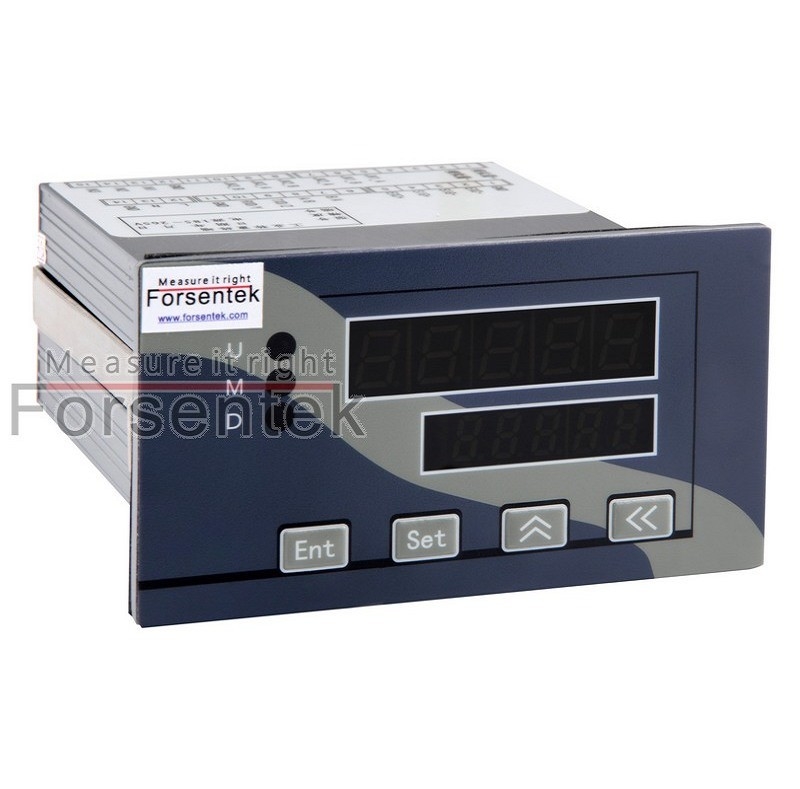

Weighing controller weighing indicator

Weighing contorller weighing indicator

Technical parameters

• Power supply: 185~265V AC,50/60Hz

• Input range:1.0~3.0mV/V

• Display range: -9999....59999

• Suitable for 1~4 load cells(Junction box is needed if connecting more than 1 load cell)

• Working temperature:-10...+50oC

• Humidity:<90% RH

• Combined error:<0.1% F.S.

• Output excitation: 9V DC

• Output port: 3 relays,220V/10A

• Commnucation interface:RS485 or RS232

• Analog output: 4-20mA or 0-10V

Dimensions

Back panel

​
