M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement

M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement

M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement
M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement

Large Image :  M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FSXA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Usage: Force Measurement Capacity: 100N 200N 500N 1000N 1500N
Load Direction: Tension And Compression Structure: Miniature S-beam Jr. Load Cell

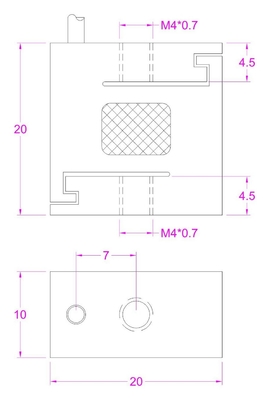

Output: Analog Transducer Mounting: M4 Tapped Hole
Material: Stainless Steel

M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement

Miniature Tension And Compression Load Cell FSXA offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, miniature s type load cell FSXA offers 100N / 200N / 500N / 1000N / 1500N five rated capacities to choose from.The bidirectional force sensor FSXA utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the full scale. The compact design enables S-beam load cell FSXA to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. Force transducer FSXA features an M4 threaded hole on each side of the loadcell for the mounting of attachments or implements, model FSXA can be used for both traction and compression force measurement in applications with limited mounting space.

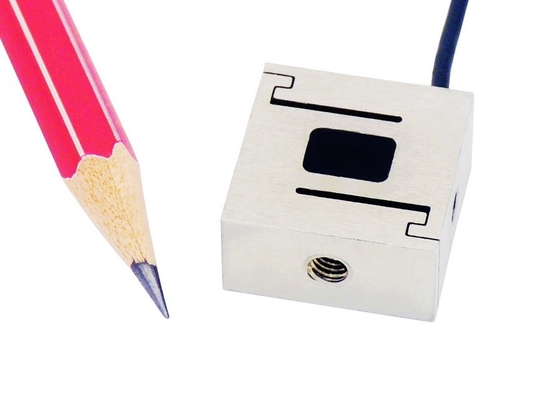

miniature tension load cell 100N

Specifications

Capacity

100N / 200N / 500N / 1000N / 1500N

10kg / 20kg / 50kg / 100kg / 150kg

22lb / 45lbf / 112lbs / 225lb / 337lbf

Rated output 2.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% of capacity
Hysteresis ±0.2% of capacity
Nonrepeatability ±0.1% of capacity
Creep(5min) ±0.1% of capacity
Safe overload 150% of capacity
Ultimate overload 200% of capacity
Compensated temperature 0...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 380±30 ohms
Output resistance 352±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø2*2000mm 4-core shielded cable
Wiring code

Compression@
Red--Excitation input+  Black--Excitation input-

Green--Signal output+  White--Signal output-



M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement

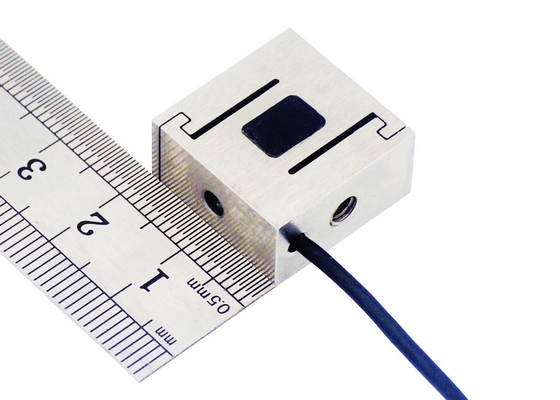

miniature tension load cell 200N

Instruction of load cell output:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Tension Compression Sensor FSXA is around 2.0mV/V.
Power supply of Push Pull Force Sensor FSXA is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of S-beam Force Sensor FSXA is normally within -24mV...+24mV for tension/compression force measurement.
Example: Miniature Jr S-beam Load Cell FSXA-500N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.

Example: Mini tension compression load cell FSXA-200N working with -10-10V amplifier,the Force-Voltage relationship will be 0-200N compression load VS 0-10V output, 0-200N tension load VS 0-(-10V) output, when you get 5V output,it means the current load is 100N compression force, when you get -1V output, it means the current load is 20N tension force,and so on.

M4 Tapped Mini Tension Load Cell 100N 200N 500N 1kN Traction Force Measurement

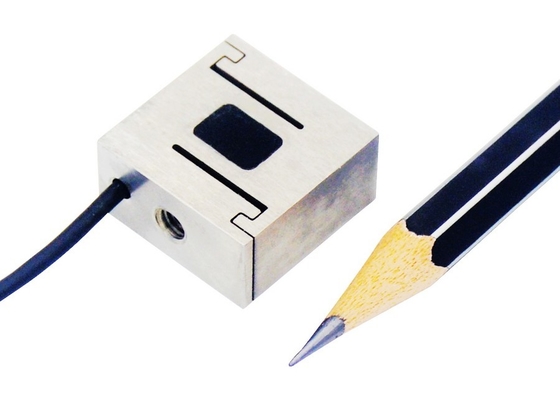

miniature tension load cell 500N
 Click here to download datasheet
