| Usage: | Force Measurement | Measure Direction: | Compression And Traction |
|---|---|---|---|
| Force Range: | 1kN 500N 200N 100N 50N 20N | Material: | Stainless Steel |
| Connection: | M4 Threaded Hole | Output: | Analog Load Cell |

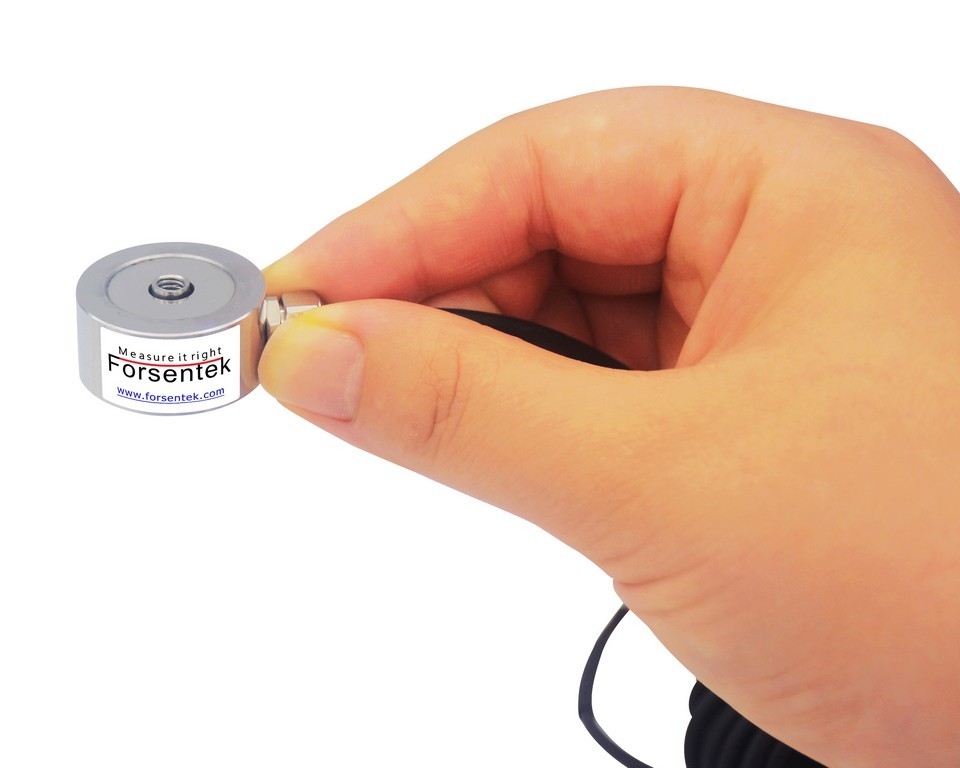

Miniature Force Transducer 100N 200N Press Fit Foce Verification 500N 1kN
Miniature Force Transducer FCU is made from stainless steel based on strain gauge technology delivering unamplified mV output which is proportional to the load applied. Small Size Pancake Load Cell FCU offers 0-20N / 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N six rated measuring ranges intended for both tension and compression force measurement. The miniature load cell FCU features a M4 tapped hole at the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Micro Load Cell FCU is applicable for both static and dynamic force measurement. Model FCU can also be modified or customzied as per requirements of our clients.
Dimensions
Specifications
| Rated Capacity |
20N / 2kg / 4.5 lbf 100kg / 1kN / 220lb |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% of rated capacity |
| Hysteresis | ±0.5% of rated capacity |
| Nonrepeatability | ±0.2% of rated capacity |
| Creep(5min) | ±0.1% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- |

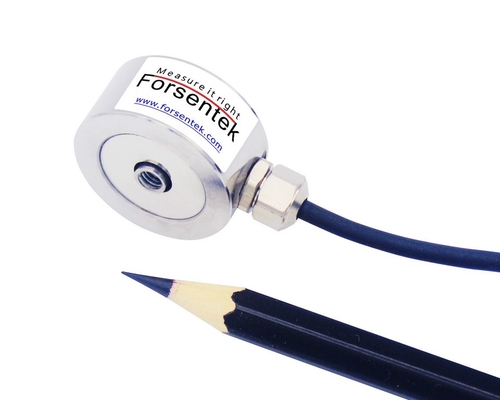

Miniature Force Transducer 100N 200N Press Fit Foce Determination 500N 1kN
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of press force load cell FCU is normally around 1.5mV/V.
Power supply of miniature compression sensor FCU is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force transducer FCU is normaly within -18mV...+18mV for bidirectional force measurement.
Example: Miniature Load Cell FCU-100N with 1.5mV/V power by 5V DC,the output range is -7.5mV...+7.5mV proportional to the applied force.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Force Load Cell FCU-200N working with 0-10V amplifier,the load-output relationship will be 0-200N compressive load VS 0-10V output, 0V output corresponds to 0N, 1V output corresponds to 20N compression load, 2V output corresponds to 40N load,and so on.

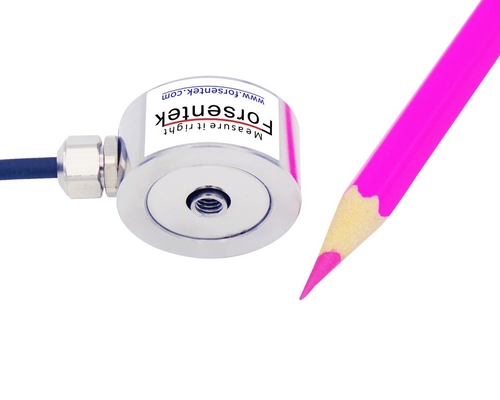

Miniature Force Transducer 1000N 500N Press Fit Foce Determination 200N 100N
