| Usage: | Force Measurement | Measure Direction: | Tension And Compression |
|---|---|---|---|
| Type: | Pancake Load Cell | Force Range: | 100kg 200kg 500kg 1000kg 2000kg |
| Material: | Stainless Steel | Connection: | M10x1.5 / M16x1.5 |
| Output: | Analog Load Cell |
Compression Load Cell 100kg 200kg 500kg 1t 2t Pancake Shear Web Load Cell

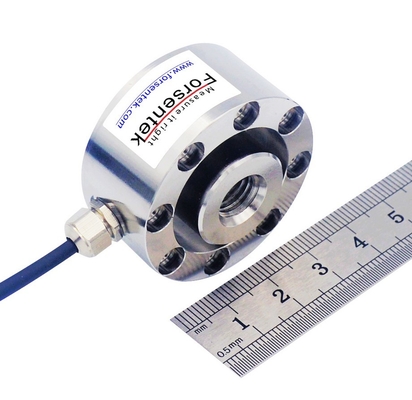

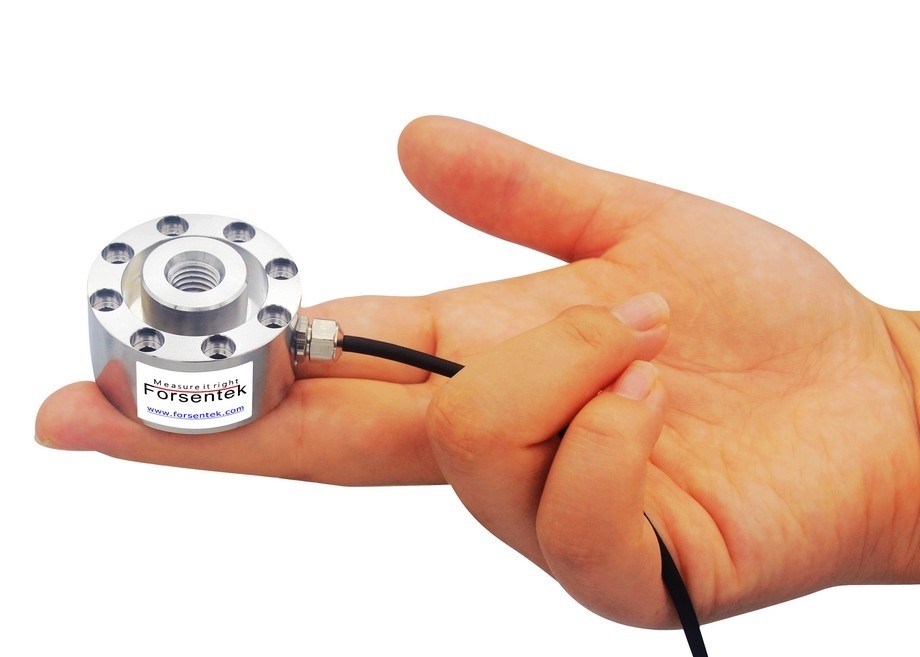

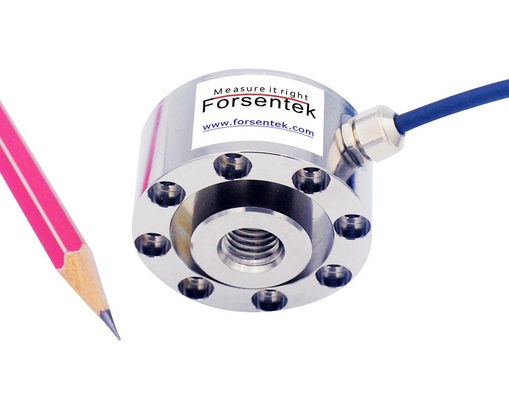

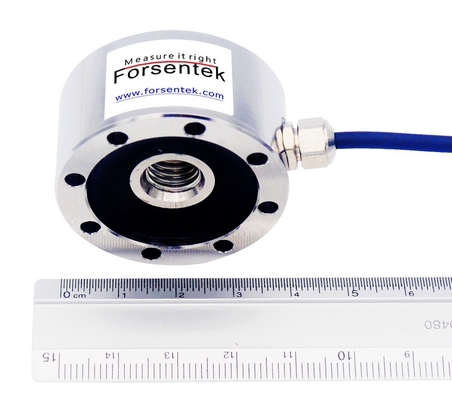

Pancake Load Cell FCMR is made from stainless steel based on strain gauge technology intended for both tension and compression force measurement. Pancake Load Cell FCMR offers 0-100kgf / 0-200kgf / 0-500kgf / 0-1000kgf / 0-2000kgf five rated measuring ranges. The miniature load cell FCMR incorporates a M10x1.5 (or an M16x1.5) threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Shear Web Load Cell FCMR is applicable for both static and dynamic force measurement. You may find pancake load cell FCMR suitable for force measurement in injection-molding machines, press machines and material testing equipment and so on. Model FCMR can also be modified or customzied as per requirements of our clients.

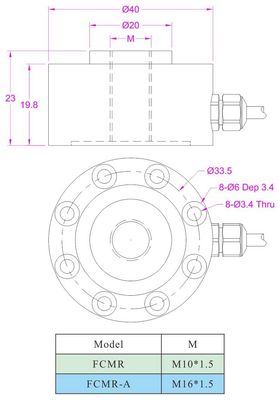

Dimensions
Specifications
| Capacity |
100kg / 1kN / 220lb 200kg / 2kN / 450lb 500kg / 5kN / 1.1klb 1 ton / 10kN / 2.2klbs 2 ton / 20kN / 4.5klbf |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.3% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 780±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- |
Compression Load Cell 100kg 200kg 500kg 1t 2t Pancake Shear Web Load Cell
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of miniature pancake load cell FCMR is normally around 1.5mV/V.
Power supply of shear web load cell FCMR is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of spoke type load cell FCMR is normaly within -22.5mV...+22.5mV.
Example: Pancake Load Cell FCMR-1000kg with 1.5mV/V power by 10V DC,the output range is -15mV...+15mV proportional to the applied load.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Force Load Cell FCMR-500kg working with 0-10V amplifier,the load-output relationship will be 0-500kg compressive load VS 0-10V output,0V output corresponds to 0kg, 1V output corresponds to 50kgf compression load, 5V output corresponds to 250kgf load,and so on.
