| Type: | Micro Compression Load Cell | Load Direction: | Tension And Compression |
|---|---|---|---|
| Capacity: | 5kgf 10kgf 20kgf 30kgf 50kgf | Usage: | Force Measurement |
| Output: | Analog Sensor | Mounting: | Flange To M3 |
Small Compression Load Cell 0-50kgf For Tablet Press Machine Force Monitoring

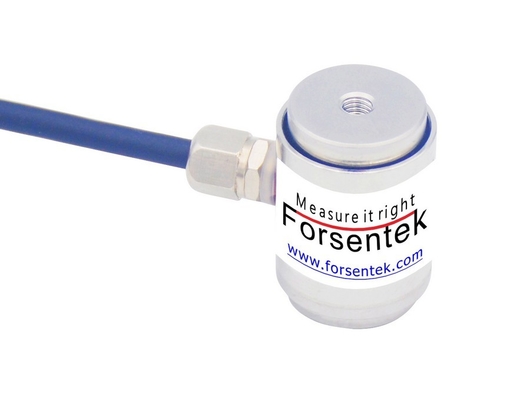

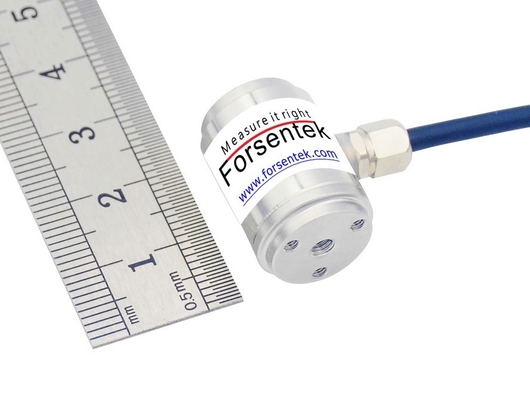

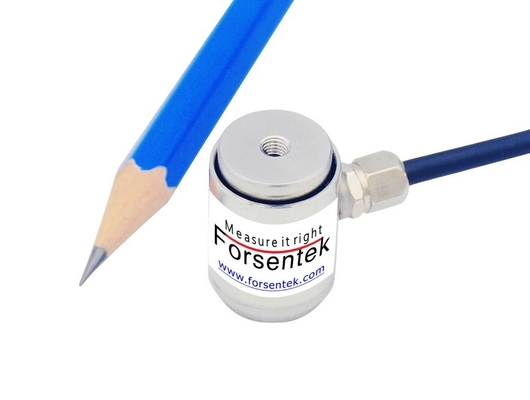

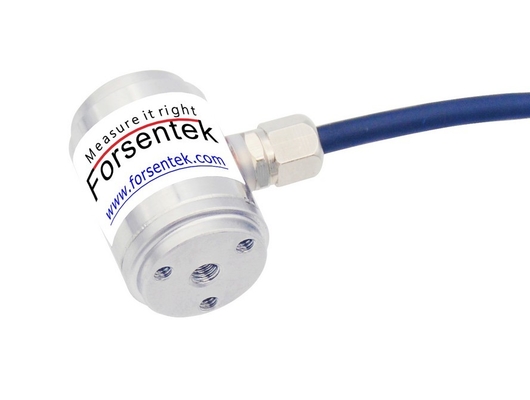

Small Compression Load Cell FFJ is made of stainless steel utilizing strain gauge technology intended for both tension and compression force measurement, high accuracy with maximum 0.1% non-linearity of the full scale. Micro Cylindrical Load Cell FFJ offers 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg (0-50N / 0-100N / 0-200N / 0-300N / 0-500N) five rated capacities to choose from. One end with flanged surface, the other end with M3 threaded hole,which makes miniature force transducer FFJ can be easily mounted to mechanical parts and get force measurement done. Stainless steel construction, compact size, bidirectional force measurement, high accuracy, Column Type Force Sensor FFJ offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, force monitoring on pharmaceutical tablet presses, assembly force monitoring, spring testing, connector insertion and extraction force measurement and so on. In addition to the standard specifications, Forsentek is also capable of providing custom design service to meet requirements of different applications.
Dimensions
| Ordering code | Measurement Range | Force direction |
| FFJ-50N | 0-50N / 0-5kgf |
Tension and compression |
| FFJ-100N | 0-100N / 0-10kgf | |
| FFJ-200N | 0-200N / 0-20kgf | |
| FFJ-300N | 0-300N / 0-30kgf | |
| FFJ-500N | 0-500N / 0-50kgf |
Specifications
| Capacity |
50N / 5kgf / 11lb 300N / 30kgf / 67lbs 500N / 50kgf / 112lbf |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of the capacity |
| Hysteresis | ±0.1% of the capacity |
| Nonrepeatability | ±0.05% of the capacity |
| Creep(5min) | ±0.05% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Small Compression Load Cell 0-50kgf For Tablet Press Machine Force Monitoring
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Pressure Force Sensor FFJ is around 2.0mV/V.
Power supply of Miniature Column Type Compressive Force Transducer FFJ is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Miniature Compression Load Cell FFJ is normally within 0mV...+30mV for bidirectional force measurement.
Example one: Miniature Cylindrical Compressive Load Cell FFJ-500N with 2.0mV/V sensitivity powered by 5V DC,the output range is 0...+10mV.
Example two: Micro Column Type Press Force Sensor FFJ-300N with 2.0mV/V sensitivity powered by 10V DC,the output range is 0...+20mV.
A signal conditioner can be used with force transducer FFJ to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Miniature Compression Force Sensor FFJ-50N working with 0-5V amplifier,the Force-Voltage relationship will be 0-50N compressive load VS 0-5V output, which is linear regardless of the measurement error. When you get 1V output, it means the current load is 10N push force, when you get 2V output, it means the current load is 20N pressure force, and so on.
Example two: Miniature Pressure Force Transducer FFJ-100N working with 4-20mA amplifier,the Force-Current relationship will be 0-100N press load VS 4-20mA output, which is linear regardless of the measurement error. Namely 4mA output corresponds to “0” load, 5.6mA output corresponds to 10N press force, 12mA output corresponds to 50N compression load, and so on.
