| Type: | Compression Force Transducer | Load Range: | 10kN 20kN |
|---|---|---|---|
| Usage: | Thrust Measurement | Load Direction: | Traction And Compression |
| Output: | Analog Sensor | Connection: | M12 Threaded Rod |

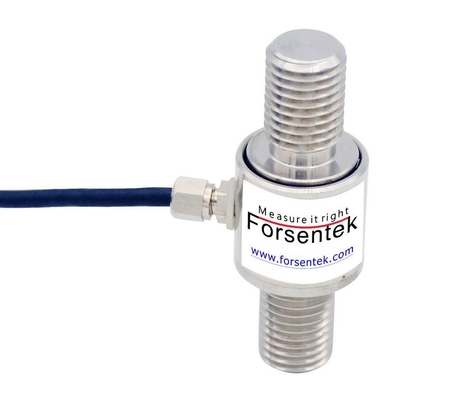

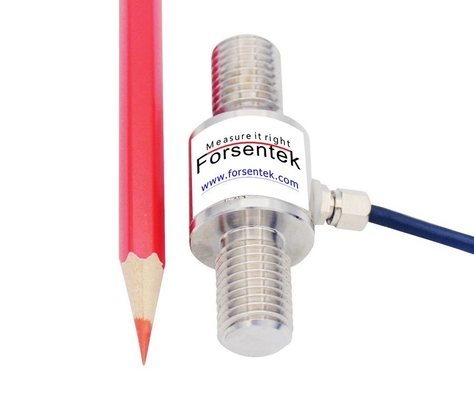

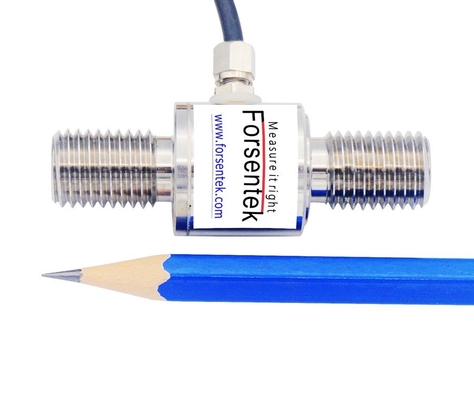

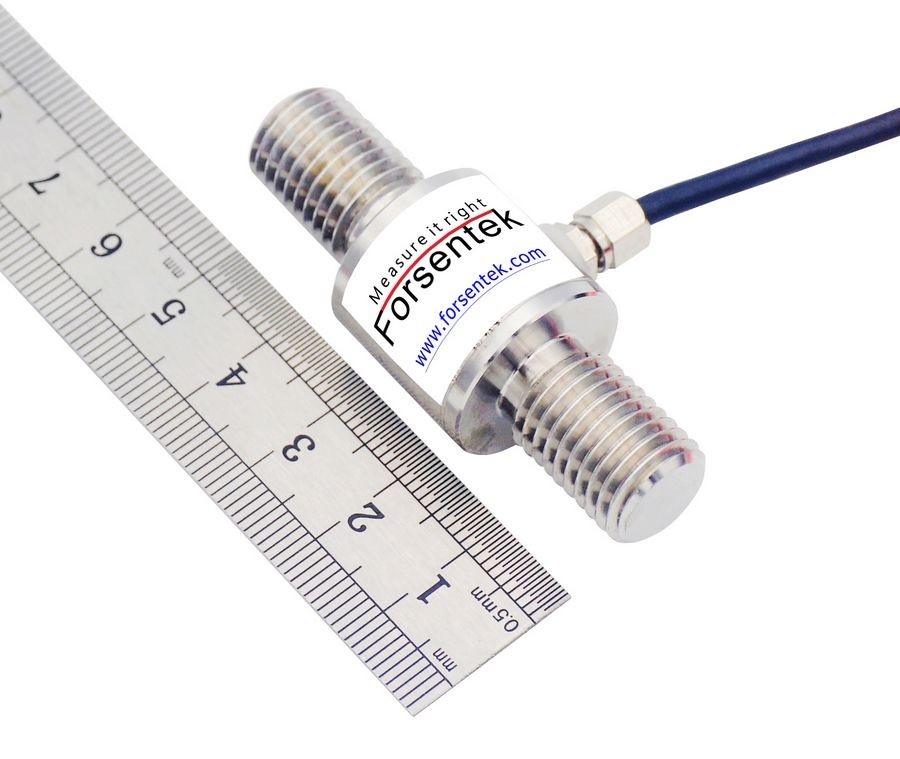

Miniature Force Transducer 20kN In-Line Threaded Force Sensor 10kN
Threaded Rod End Compression And Traction Load Cell FLH is made of 17-4 stainless steel based on strain gauge technology intended for both traction and compression force measurement. Inline type pull push load cells are designed to be mounted inline to the load axis with rugged structure for industrial applications.The Rod End Load Cell FLH can be easily mounted to existing system through M12 threaded rods located on both sides of the transducer, these metric threads can also be used to mount attachments, such as female eye bolt,bolt adapter,etc.,to fit different usage requirements. Tension Compression Sensor FLH offers 0-10kN / 0-20kN two rated measuring ranges, each sensor is integrated with a 3-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection. Compression Traction Force Transducer FLH is normally used for press-in force measurement, cylinder thrust force measurement, auto equipment, Riveting machine pressure measurement, production line, hand press machines,etc.
load cell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Threaded Inline Load Cell FLH is designed to measure both tension and compression force,outputs millivolt signal ranging -22.5mV...+22.5mV.
Specifications
| Rated capacity |
10kN / 1000kg / 2.2klb 20kN / 2000kg / 4.5klb |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% of R.O. |
| Hysteresis | ±0.3% of R.O. |
| Nonrepeatability | ±0.1% of R.O. |
| Creep(5min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 750±100 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection |
Standard: IP50 Enhanced: IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of M12 Threaded Inline Load Cell FLH is normally around 1.5mV/V.
Power supply of Rod End Traction Compression Load Cell FLH is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of In Line Load Cell FLH is normally within -22.5mV…+22.5mV for tensile and compressive force measurement.
Example one: Threaded In-line Tension Compression Transducer FLH-20kN with 1.5mV/V sensitivity powered by 5V DC, the output range is -7.5mV...+7.5mV.
Example two: M12 Threaded Rod End Tension/Compression Force Sensor FLH-10kN with 1.4mV/V rated output powered by 10V DC, the output range is -14mV...+14mV.

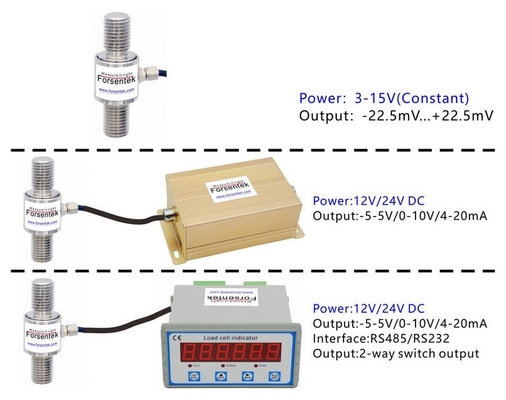

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Inline Type Traction Compression Force Sensor FLH-10kN working with amplifier FSC(-10-10V)-24V, the Load-Voltage relationship will be 0-10kN compression force VS 0-10V output, 0-10kN traction force VS 0-(-10V), which is linear regardless of the measurement error, 1V output corresponds to 1kN compressive load, (-2V) output corresponds to 2kN tensile load, and so on.
Example two: Rod End Traction Compression Load Cell FLH-20kN working with amplifier FSC(4-12-20mA)-24V, the Force-Current relationship will be 0-20kN compressive force VS 12-20mA output, 0-20kN traction force VS 12-4Ma, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 2kN compression load, 8mA output corresponds to 10kN tension load, and so on.
Miniature Force Transducer 20kN In-Line Threaded Force Sensor 10kN
| Ordering code | Measuring Range | Force direction |
| FLH-10kN | 0-10kN / 0-2200lb |
Traction and Compression |
| FLH-20kN | 0-20kN / 0-4500lb |
