| Usage: | Force Measurement | Type: | Miniature Pull Force Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 1kg 2kg 5kg 10kg 20kg |
| Force Measurement Direction: | Tension And Compression | Threaded Hole: | M2 |
Micro Pull Load Cell 1kg Miniature Tension Load Cell 2kg Tension Sensor 5kg

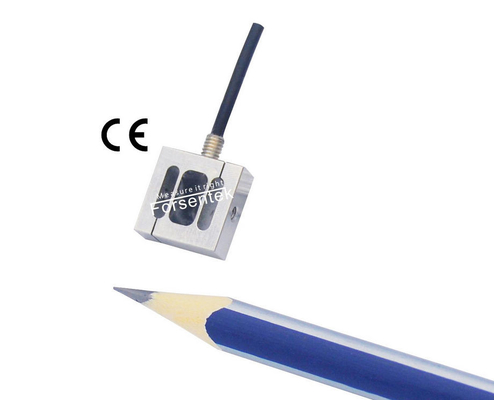

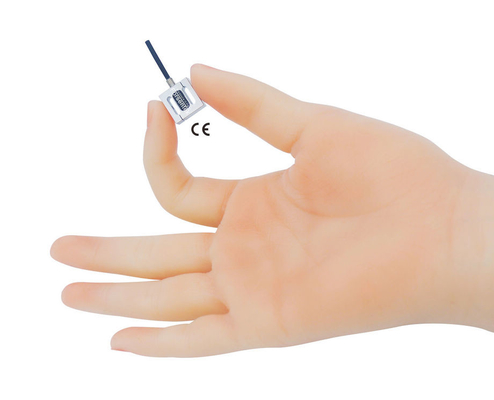

Miniature S-beam Push Pull Load Cell FSSQ offers a compact design for a variety of applications. the S Beam Compression Tension Load Cell series provides accuracy, compact design features, and 5 capacity ranges 1kg / 2kg / 5kg / 10kg / 20kg to choose from.The jr s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the full scale, the compact design enables the FSSQ to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The Micro Force Sensor FSSQ features M2 threaded holes on two sides for the mounting of attachments or implements for both compression and tension force measurement applications with limited mounting space. Micro Force Sensor FSSQ can also be modified or customized as per client's request.
Dimensions(unit in "mm")
Specifications
| Capacity |
10N / 1kg / 2.2lb |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Compression@ Green--Signal+ White--Signal- |
Wheatstone Bridge:A Wheatstone bridge is a network of four resistive legs. One or more of these legs can be active sensing elements. The Wheatstone bridge is the electrical equivalent of two parallel voltage divider circuits. R1 and R2 compose one voltage divider circuit, and R4 and R3 compose the second voltage divider circuit. The output of a Wheatstone bridge is measured between the middle nodes of the two voltage dividers.
Rated Capacity: The maximum axial load the load cell is designed to measure within its specifications.
Non-linearity: The maximum deviation of the calibration curve from a straight line drawn between the no-load and rated outputs; expressed as a percentage of the rated output and measured on increasing load only.
Non-repeatability: The maximum difference between load cell output readings for repeated loadings under identical loading and environmental conditions.
Miniature Compression And Tension Load Cell FSSQ outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSQ-10N and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-10N compression load VS 0-5V output, 0-10N tension load VS 0-(-5V) output, which is linear regardless of the measurement error.
