Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement

China Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement supplier
Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement supplier Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement supplier Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement supplier

Large Image :  Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FL25

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Usage: Tension Compression Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor

Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement

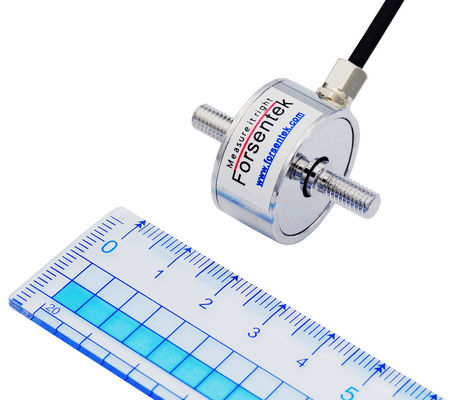

Threaded rod end tension and compression load cell FL25 is made of 17-4 stainless steel and CE certified.In-line force transducer FL25 offers rugged structure for industrial applications.Inline load cells are designed to be mounted inline to the load axis for both tension and compression force measurement.The force sensor FL25 can be easily mounted to existing system through M5 or M6 threaded rods located on both sides of the transducer,these metric threads can also be used to mount attachments,such as female eye bolt,bolt adapter,etc.,to fit different usage requirements.Model FL25 uses metal foil strain gauge technology with 2.0mV/V rated output with 5kg / 10kg / 20kg / 30kg / 50kg / 60kg / 100kg rated capacities to choose from. Each sensor is integrated with a 4-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection.Inline load cell FL25 is normally used for press-in force measurement, cylinder push pull force measurement, auto equipment,production line, hand press machine.etc.

M5_threaded_load_cell

Dimensions

Male threaded load cell 1kN 500N 200N 100N 50N tension compression force measurement
Specifications

Rated capacity

50N / 5kgf

100N / 10kgf

200N / 20kgf

300N / 30kgf

500N / 50kgf

600N / 60kgf

1KN / 100kgf

Rated output 2.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.5% of R.O.
Hysteresis ±0.5% of R.O.
Nonrepeatability ±0.2% of R.O.
Creep(10min) ±0.1% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 700±30 ohms
Output resistance 700±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø3*4000mm 4-core shielded
Wiring code Red--Exc+ Black--Exc-
Green--Sig+ White--Sig-



A loadcell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Threaded load cell FL25 is designed to measure both tension and compression force,outputs millivolt signal ranging -20~20mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
