| Usage: | Tension/compression Force Measurement | Type: | Low Profile Pancake Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Material: | Stainless Steel |
| Capacity: | 500N 1kN 2kN 3kN | Threaded Hole: | M8 |
Low profile compression load cell 50kg 100kg 200kg pancake load cell M8

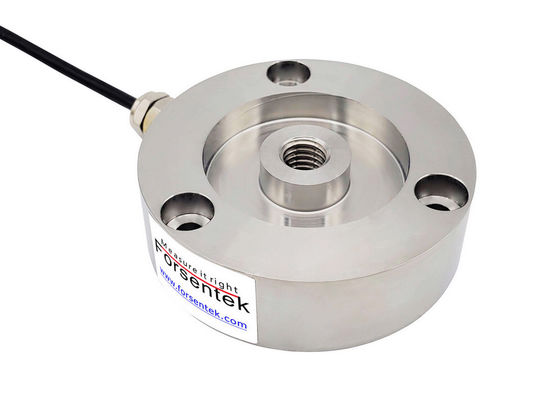

Low profile pancake load cell FCMP is made of stainless steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Low height compression load cell FCMP offers 50kg / 100kg / 200kg / 300kg four different measuring ranges with maximum 0.3% non-linearity of the rated output to choose from intended for both static and dynamic force measurement,low profile load cell FCMP can be used for both tension and compression measurement,low profile structure makes it also suitable for in-line force monitoring.Model FCMP is designed with a M8x1.25 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCMP applicable for force measurement in injection-molding machines, hand press machines and material testing equipment and so on.
Dimensions
Specifications of loadcell FCMP
| Capacity |
50kg / 500N / 110 lbf 100kg / 1kN / 220lbf 200kg / 2kN / 440 lb 300kg / 3kN / 660 lbf |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 780±100 ohms |
| Output resistance | 750±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Low profile pancake compression load cell with M8 threaded hole
