Usage: Tension/Compression Load Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor

M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor

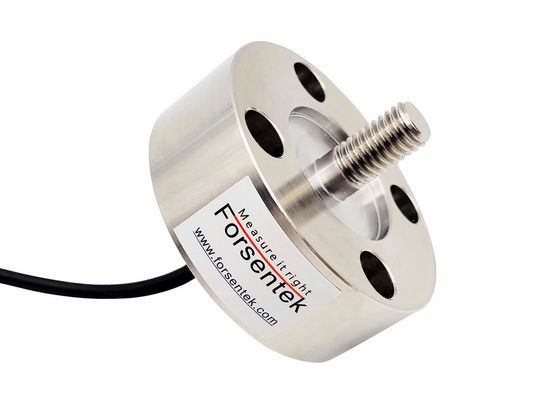

Rod end tension compression force sensor FCL is made of stainless steel based on strain gauge technology with 100N / 200N / 300N / 500N / 1kN / 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN rated capacities to choose from. The threaded rod on the top of the sensor can be used to mount attachments such as load buttons and eye bolts for different applications. Compared to universal side cable outlet, force transducer FCL adopts bottom cable outlet which helps save the mounting space, tension compression load cell FCL is suitable for in-line force measurement. Modification or customization is available if the existing speciations are not applicable.

rod_end_compression_load_cell_100KG_200KG
Dimensions(Unit in milimeter)
rod_end_compression_load_cell_50kg_20kg_10kg
Specifications

Capacity

10kg / 100N
20kg  / 200N
30kg / 300N
50kg / 500N
100kg / 1kN
200kg / 2kN
300kg / 3kN
500kg / 5kN
1000kg / 10kN
2000kg / 20kN
3000kg / 30kN
5000kg / 50kN

Rated output1.5mV/V
Excitation3-15V
Zero balance±0.05mV/V
Nonlinearity±0.3% R.O.
Hysteresis±0.3% R.O.
Nonrepeatability±0.1% R.O.
Creep(5min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature0...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.03% R.O./oC
Temperature shift span±0.03% R.O./oC
Input resistance380±30 ohms
Output resistance350±10 ohms
Insulation resistance>5000M ohms
Ingress protectionIP65
Material of elementStainless steel
CableØ3*2000mm 4-core shielded cable

Wiring code

Red--E+ Black--E- Green--S+ White--S-


M6/M8/M12/M16/M20/M24 Rod end in-line type compression force sensor
