Usage: Two-dimensional Force Measurement Theory: Strain Gauge Force Sensor
Output: Analog Sensor Capacity: 0-100kg

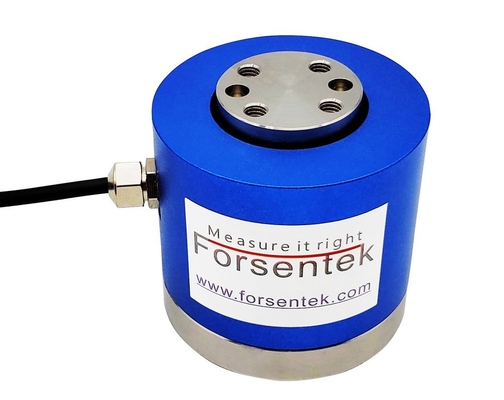

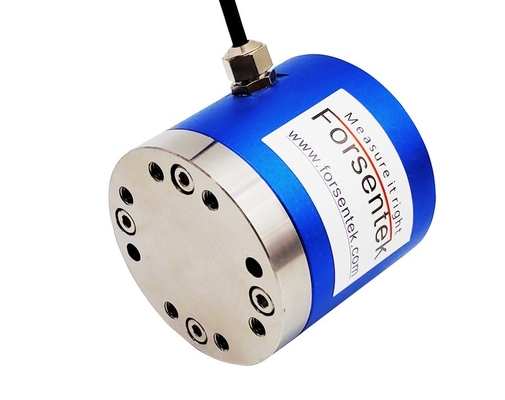

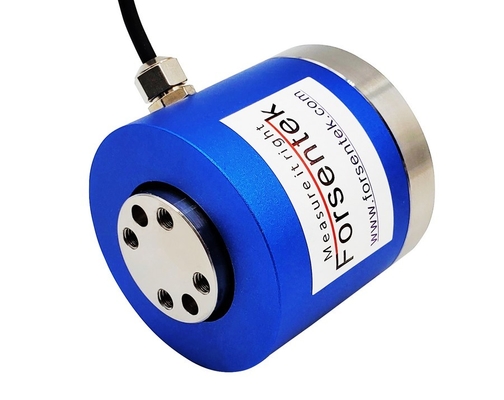

Biaxial force sensor Fx/Fy 2-axis load cell two-dimensional force measurement

2-axis force sensor F2E offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg / 0-100kg eight measuring ranges intended for two-dimensional force measurement in Fx/Fy directions.Each channel consists of a full wheatstone bridge to deliver mV/V output with 4-wire configuration.Both Fx and Fy direction supports tension and compression force measurement.Bi axial load cell F2E is normally used for forct test benches,actuator force control,force simulators and other applications involve two axis force measurement.2D sensor F2E can be modified or customized to meet requirements of different applications.

 bi_axial_load_cell_force_sensor

Dimensions

biaxial_force_transducer
Ordering code

Part No. Capacity
Fx=Fy
F2F-1kg 1kgf
F2F-2kg 2kgf
F2F-5kg 5kgf
F2F-10kg 10kgf
F2F-20kg 20kgf
F2F-30kg 30kgf
F2F-50kg 50kgf
F2F-10kg 100kgf

Specifications

Rated Capacity

1kg 2kg 5kg 10kg 20kg 30kg 50kg 100kg

Rated output  1.0mV/V
Excitation  3-15V
Zero balance  ±0.1mV/V
Non-linearity  ±0.3% R.O.
Hysteresis  ±0.3% R.O.
Non-repeatability  ±0.1% R.O.
Creep(10min)  ±0.1% R.O.
Safe overload  150% F.S.
Ultimate overload  200% F.S.
Compensated temperature  -10...+40oC
Operating temperature  -20...+60oC
Temperature shift on zero  ±0.03% R.O./oC
Temperature shift on span  ±0.02% R.O./oC
Input resistance  380±30 ohms
Output resistance 380±30 ohms
Insulation resistance  >2000M ohms
Ingress protection  IP50
Material of element  Stainless steel
Cable  Ø3*3000mm 8-core shielded cable
Wiring code

Fx @ Red--E+   Black--E-    Green--S+   White--S-

Fy @ Brown--E+   Yellow--E-   Blue--S+   Gray--S-


Bi axial load cell 2-axis force sensor for two-dimensional force measurement
