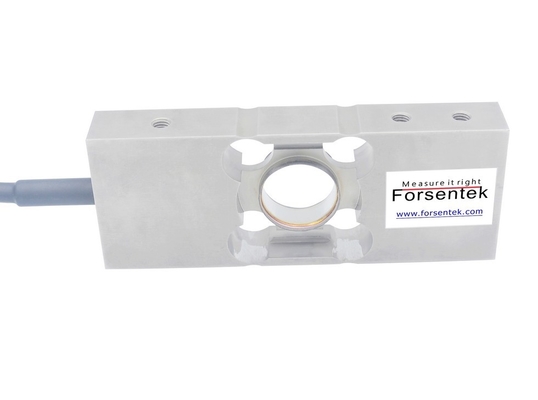

Loadcell Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB

China Loadcell Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB supplier
Loadcell Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB supplier Loadcell Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB supplier Loadcell Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB supplier

Large Image :  Loadcell Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FHPS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Theory: Resistance Sensor
Output: Analog Sensor Capacity: 25lb 50lb 100lb(6kg 12kg 15kg 30kg 60kg)

Substitute for Siemens single point load cell SIWAREX WL260 SP-S SB

Siemens single point load cell FHPS is made of stainless steel based on strain gauge technology,it offers 6kg / 12kg / 15kg / 30kg / 60kg (25lb / 50lb / 100lb) measuring ranges to choose from.High accuracy with maximum 0.017% non-linearity of the full scale.Corner trimmed for platform sizes up to 350x350mm, suitable for off-center load measurement.Laser welded with IP68 ingress protection,load transducer FHPS is temperature compensated to deliver stable and accurate measuring results over long term even in harsh conditions,dynamic load cell FHPS is ideally suited for use in the chemical industry, food industry, pharmaceutical industry, bagging, filling and dosing machines,checkweighers,etc..You may find model FHPS interchangeable with Anyload 651HS single point load cell, Vishay Revere Transducers HPSM, Zemic BM6A, sensortronics paltform load cell 60064, ptglobal PTSSP6-AW, Scaime AK 60, Siemens SIWAREX WL260 SP-S SB with lower cost without compromising the quality.

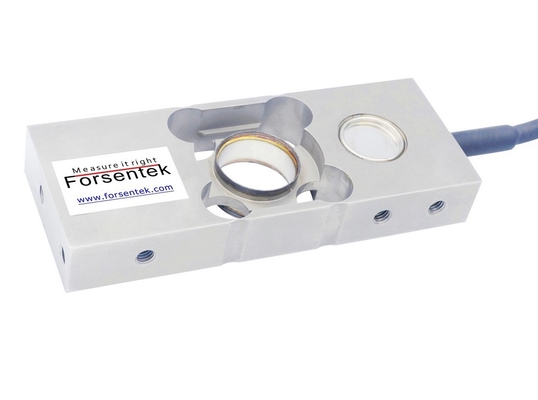

Siemens single point load cell SIWAREX WL260 SP-S SB

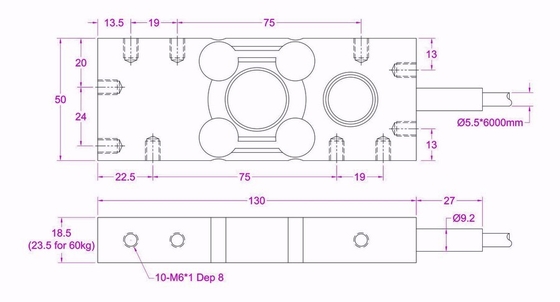

Dimensions(in milimeter)

single point load cell SIWAREX WL260 SP-S SB

Specifications

Capacity

6kg 12kg 15kg 30kg 60kg

(25lb 50lb 100lb)

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±1.5% R.O.
Nonlinearity ±0.017% R.O.
Hysteresis ±0.017% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.017% R.O.
Safe overload 150% F.S.
Ultimate overload 250% F.S.
Compensated temperature -10...+40oC
Operating temperature -35...+65oC
Temperature shift zero ±0.015% R.O./10oC
Temperature shift span ±0.015% R.O./10oC
Input resistance 400±20 ohms
Output resistance 352±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.5*6000mm 6-core shielded
Wiring code

Green--Exc+ Black--Exc-

Yellow--Sen+ Blue--Sen-

White--Sig+ Red--Sig-



IP68 waterproof Stainless steel single point load cell 6kg 12kg 30kg 60kg

Siemens load cell SIWAREX WL260 SP-S SB

single point load cell pdf
