| Usage: | Tension Compression Force Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 7.5ton 5ton 3ton 2ton 1 Ton 500kg |
| Material: | Stainless Steel |

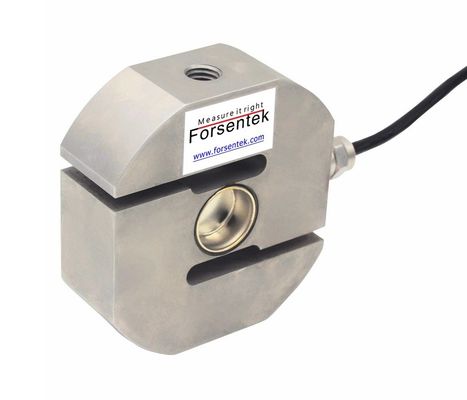

IP68 waterproof S-beam tension/compression load cell 500kg 1 ton 2 ton 5ton
S-beam tension compression load cell FSRT is made based on strain gauge technology to deliver 2.0mV/V output from the built-in wheatstone bridge,S-beam load cell FSRT is intended for both tension and compression force measurement with 0-500kg / 0-1 ton / 0-2 ton / 0-3ton / 0-5 ton / 0-6ton / 0-7.5ton measuring ranges to choose from.The internal threads located on both ends can be used to install swivel heads or load buttons for different purposes.S-type load cell FSRT is made of stainless steel and IP68 hermetically sealed which makes it applicable weighing applications with harsh working conditions.Temperature compensation process ensures stable performance throughout the working temperature range.Typical applications for this type of force transducer are for example suspended tank and vessel weighing, hopper scales, concrete batching equipment, auto-filling machines, conveyor belt scales, hanging scales, material testing machines, and so on.
Dimensions(in milimeter)
Specifications
| Capacity |
500kg 1000kg 2000kg 3000kg 4000kg 5000kg 6000kg 7500kg |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.017% R.O. |
| Hysteresis | ±0.017% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.017% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 300% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 350±5 ohms |
| Output resistance | 350±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable |
500kg---Ø5*3000mm 1000kg~7500kg---Ø5*6000mm 4-core shielded cable |
| Wiring code |
Red--Exc+ Black--Exc- |
IP68 waterproof S-beam tension/compression load cell 500kg 1 ton 2 ton 5ton
