2kg weight sensor small size load sensor 2kg weight measurement unit

China 2kg weight sensor small size load sensor 2kg weight measurement unit supplier
2kg weight sensor small size load sensor 2kg weight measurement unit supplier 2kg weight sensor small size load sensor 2kg weight measurement unit supplier 2kg weight sensor small size load sensor 2kg weight measurement unit supplier

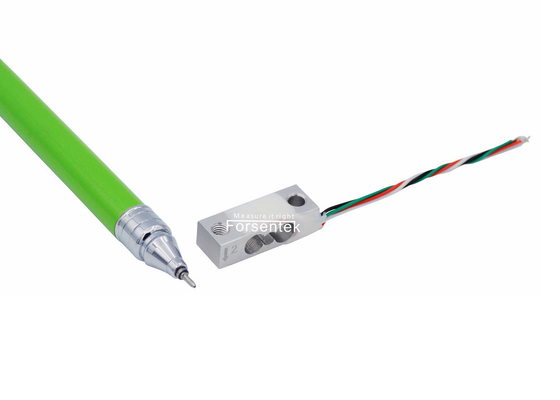

Large Image :  2kg weight sensor small size load sensor 2kg weight measurement unit

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FMZC

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Usage: Weight Measurement Theory: Strain Gauge Load Sensor
Output: Analog Sensor Capacity: 20N 30N 50N(2kgf 3kgf 5kgf)

2kg weight sensor small size load sensor 2kg weight measurement unit
Small size weight sensor FMZC is a weight transducer that converts mechanical load into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.FMZC utilizes strain gage technology to deliver maximum 0.1% non-linearity of the rated output,1000 ohms strain gauges are used to minimize the power consumption which makes it suitable for weighing electronics where durability matters.Small size load cell sensor FMZC offers 2kg / 3kg / 5kg rated capacities to choose from.With 22mm total length,mini load cell FMZC makes weight measurement for applications with limited mounting space possible. Small size load sensor FMZC weighs only 2.2g thanks to its compact size and aluminum construction which makes it applicable for portable weighing devices. Miniature size, high accuracy, miniature size, light weight, low cost, you may find load cell sensor FMZC suitable for weighing applications such as coffe machine weight measurement,vending machine weight monitoring,warehouse weight management, arduino based weighing instruments,packaging machines, feeding machines and so on. Besides the standard specifications, Forsentek is also capable of and willing to provide custom made solutions according to clients' specific requirements.

2kg weight sensor

Specifications

Rated capacity

2kg / 20N

3kg / 30N

5kg / 50N

Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% of R.O.
Hysteresis ±0.1% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(2min) ±0.05% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.05% of R.O./oC
Temperature shift span ±0.05% of R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum
Cable 32AWG*90mm(Longer cable available)
Wiring code Red--Exc+ Black--Exc-
Green--Sig+ White--Sig-



2kg weight sensor small size load sensor 2kg weight measurement unit

weight measurement unit

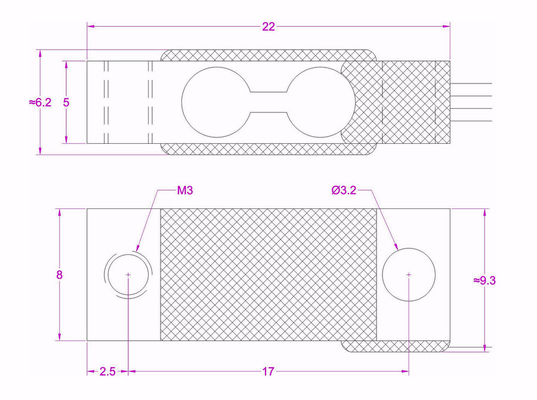

Dimensions(unit in milimeter)

weight_sensor_small_size

mini load cell pdf
