Flange to flange compression load cell 0-60kN Press force measurement

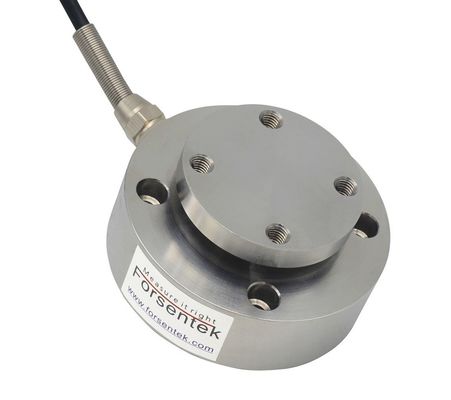

Flange type compression load cell FFE is made of stainless steel based on strain gauge technology intended for both compression and tension force measurement,force sensor FFE offers 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 40kN / 50kN / 60kN different rated capacities to choose from,which delivers maximum 0.3% non-linearity of the rated output.Flange-to-flange structure enables FFE to be easily and firmly connected to force applying mechanism,you may find compression force sensor FFE suitable for applications such as hand press force verification,actuator force control,assembly force checking,spring testing,air cylinder thrust measurement,ultrasonic welding clamp force control,and so on.
Specifications
| Capacity | 2kN 3kN 5kN 10kN 20kN 30kN 40kN 50kN 60kN |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 750±100 ohms |
| Output resistance | 702±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable |
|
Wiring code |
Red--E+ Black--E- Green--S+ White--S- |
Dimensions(unit in "mm")
