| Material: | Stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg |

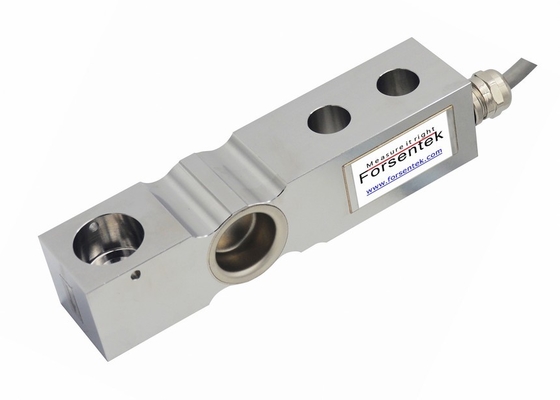

Stainless steel load cell IP68 waterproof load cell sensor for platform scales
Shear beam load cell FHSR is made of stainless steel with IP68 waterproof using laser welding technology which makes it suitable for both indoor and outdoor weighing applications with harsh environment.High accuracy load cell FHSR offers 110kg / 220kg / 550kg / 1100kg / 1760kg / 2200kg / 4400kg seven different measuring ranges to choose from,weight sensor FHSR delivers maximum 0.02% non-linearity of the rated output.You may find loadcell FHSR applicable for applications such as tank weighing,hopper weighing,batching or platform scales as well as for level monitoring,etc..
Specifications
| Capacity | 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg |
| Rated output | 1.94mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.02% R.O. |
| Hysteresis | ±0.02% R.O. |
| Nonrepeatability | ±0.02% R.O. |
| Creep(30min) | ±0.02% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 390±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable | Ø5.4*3000mm |
| Wiring code |
Blue--Exc+ Black--Exc- Green--Sen+ Grey--Sen- White--Sig+ Red--Sig- |

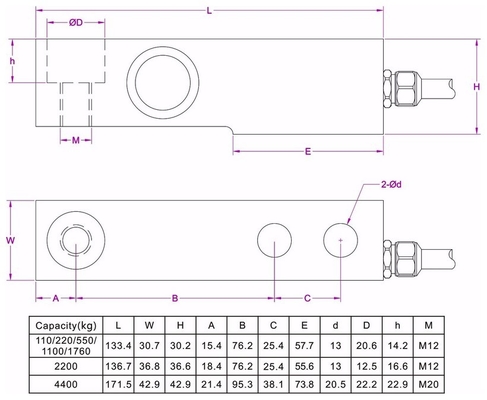

Dimensions(Unit in "mm")
