Single-ended shear beam load cell 110kg 220kg 550kg 1100kg 2200kg 4400kg

China Single-ended shear beam load cell 110kg 220kg 550kg 1100kg 2200kg 4400kg supplier
Single-ended shear beam load cell 110kg 220kg 550kg 1100kg 2200kg 4400kg supplier Single-ended shear beam load cell 110kg 220kg 550kg 1100kg 2200kg 4400kg supplier

Large Image :  Single-ended shear beam load cell 110kg 220kg 550kg 1100kg 2200kg 4400kg

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FHSR

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Theory: Resistance Sensor
Output: Analog Sensor Capacity: 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg

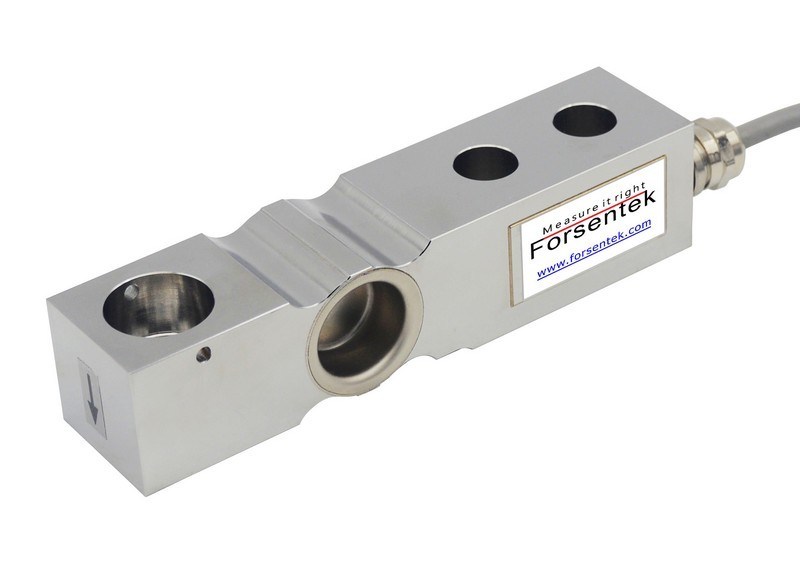

Single-ended shear beam load cell 110kg 220kg 550kg 1100kg 2200kg 4400kg

Single-ended beam load cell FHSR is made of stainless steel with IP68 waterproof using laser welding technology which makes it suitable for industrial weighing applications with harsh environment.High accuracy load cell FHSR offers 110kg / 220kg / 550kg / 1100kg / 1760kg / 2200kg / 4400kg seven different measuring ranges to choose from,weight sensor FHSR delivers maximum 0.02% non-linearity of the rated output.You may find FHSR applicable for applications such as tank weighing,hopper weighing,batching or platform scales as well as for level monitoring,etc..



single-ended shear beam load cell

Specifications

Capacity 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg
Rated output 1.94mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.02% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+65oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 390±30 ohms
Output resistance 352±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.4*3000mm
Wiring code

Blue--Exc+   Black--Exc-

Green--Sen+  Grey--Sen-

White--Sig+  Red--Sig-



Dimensions(Unit in "mm")

shear beam load cell

single-ended shear beam load cell PDF
