Rotary shaft torque shaft torque sensor 0-500Nm rotating shaft torque meter
Shaft to Shaft Rotating Torque Sensor features a shaft to shaft mounting solution with torque measurements ranging from ±10 Nm to 500N-m .Dynamic torque sensor FY01 utilizes metal foil strain gauge technology and features slip-ring signal transmission allowing the sensor to operate at up to 4000RPM.Applications for the FY01 series torque transducer include power tool auditing, engine testing for automotive and aerospace, and industrial testing apparatuses.
A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque , rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque(which is also known as reaction torque).
FY01 is a slip ring torque transducer,utilizing strain gauge technology,compact size,shaft to shaft design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.The measured torque can also be display through torque indicator.
Specifications
| Capacity | 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Non-linearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable |
| Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |
Rotary shaft torque shaft torque sensor 0-500Nm rotating shaft torque meter

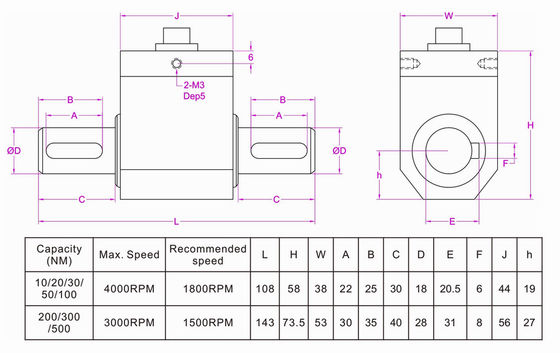

Dimensions(unit in mm)
