Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement

Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement

Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement
Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement

Large Image :  Inline load cell 5kg 10kg 20kg 50kg tension and compression force measurement Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FLN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Usage: Tension Compression Force Measurement Theory: Strain Gauge Force Sensor
Output: Analog Sensor Capacity: 5kg 10kg 20kg 50kg

Inline load cell 5kg 10kg 20kg 50kg tension and compression force sensor

Inline type load cell FLN is made of stainless steel based on strain gauge technology,M4 threaded rods located on both end can be used to install attachments,such as female eye bolt,bolt adapter,etc.,to fit requirement of different applications.In-line force sensor FLN can be used for both tension and compression force measurement.

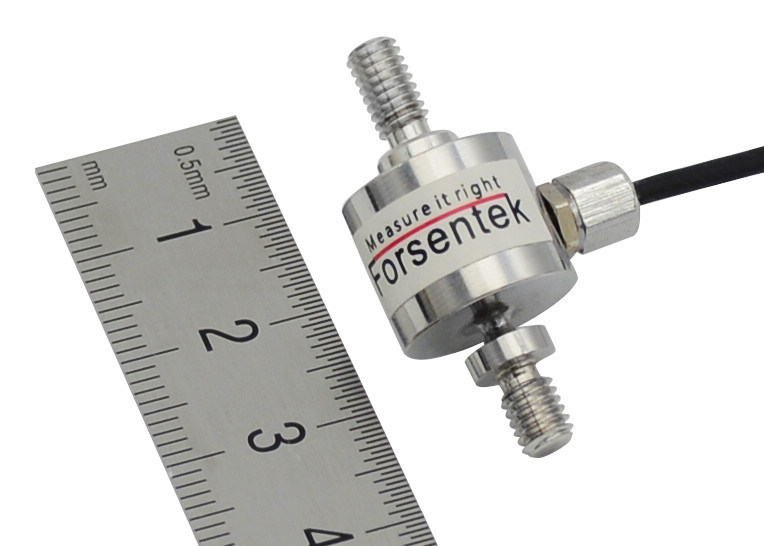

inline load cell 10kg

Specifications

Capacity

5kg 10kg 20kg 50kg

Rated output 1.0mV/V
Excitation 3-12 V
Zero balance ±0.1mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(5min) ±0.2 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance >700 ohms
Output resistance >700 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø2*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-



Tension and compression load cell 5kg 10kg 20kg 50kg inline force sensor

tension compression load cell 10kg

Dimensions:

rod end load cell 10kg
