Product Details:
Payment & Shipping Terms:
|
| Usage: | Measure Torque | Type: | Stationary Torque Sensor |
|---|---|---|---|
| Output: | Analog Transducer | Torque Range: | 0-100kNm |
| Mounting: | Flange-to-flange |
100kNM Torque sensor 800klb-in torque transducer 700klb-in torque measurement
Features
Specifications
| Capacity |
200NM 300NM 500NM 1000NM 2000NM 3000NM 5000NM 10000NM 20000NM 30000NM 40000NM 50000NM 60000NM 100000NM |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Non-linearity | ±0.25% R.O. |
| Hysteresis | ±0.25% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Alloy steel |
| Cable | Ø5.5*3000mm 4-core shielded |
| Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |

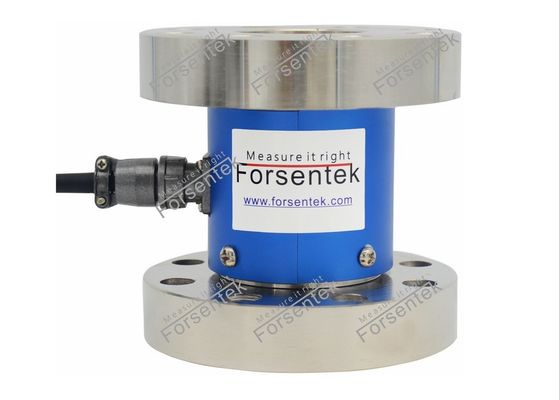

Flange to flange torque sensor FT03
Dimensions(in "mm")
