| Usage: | Load Measurement/Weight Monitoring | Type: | Arduino Weight Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 2kg 3kg 5kg 10kg |

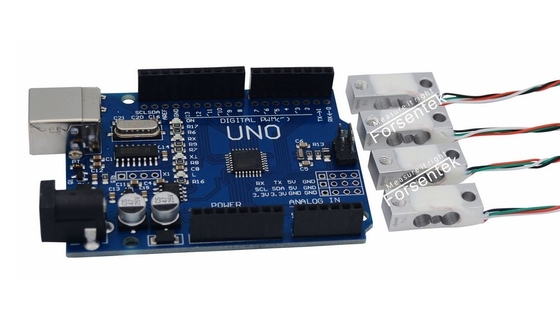

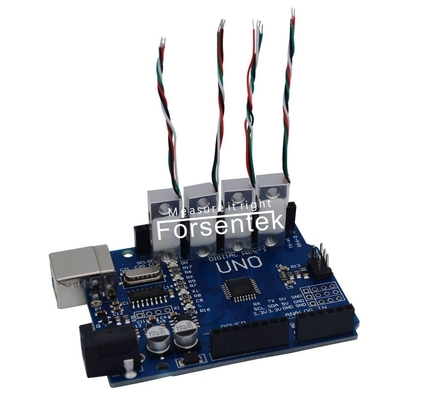

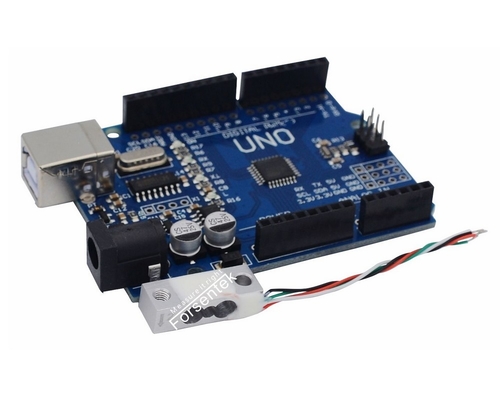

Miniature weight sensor arduino 2kg 3kg 5kg small load cell sensor
Features
Specifications
| Rated capacity |
2kg(20N / 2.2 lbs) 3kg(30N / 6.6 lbs) 5kg(50N / 11 lbs) 10kg(100N / 22lb) |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.05% of R.O. |
| Hysteresis | ±0.05% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(2min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.05% of R.O./oC |
| Temperature shift span | ±0.05% of R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*180mm(Longer cable available) |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

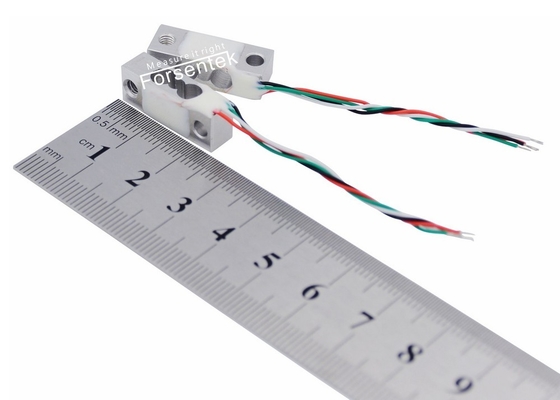

Miniature weight sensor FMZC

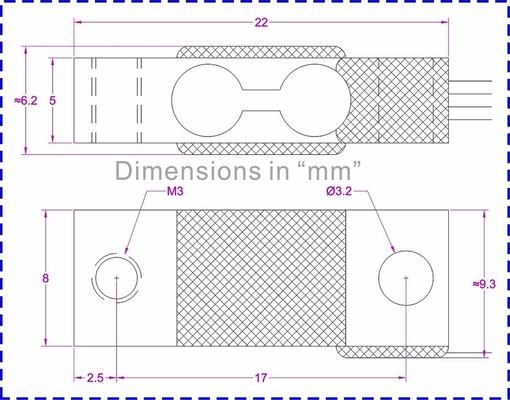

Dimensions(unit in milimeter)
Ordering code: FMZC-2kg FMZC-3kg FMZC-5kg FMZC-10kg
