20N Small weight sensor 2kg miniature load sensor for arduino

China 20N Small weight sensor 2kg miniature load sensor for arduino supplier
20N Small weight sensor 2kg miniature load sensor for arduino supplier 20N Small weight sensor 2kg miniature load sensor for arduino supplier 20N Small weight sensor 2kg miniature load sensor for arduino supplier 20N Small weight sensor 2kg miniature load sensor for arduino supplier

Large Image :  20N Small weight sensor 2kg miniature load sensor for arduino

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FMZT-2kg

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Usage: Weight Measurement/force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 2kg(20N)

20N Small weight sensor 2kg miniature load sensor for arduino

 small weight sensor
Features

  • Miniature load cell,small size
  • High output resistance,low heat emission
  • High accuracy
  • Low cost load cell
  • Suitable for arduino based applications
  • Customizable

load cell 2kg

Specifications

Capacity 2kg(20N)
Rated output 0.7 mV/V
Excitation 3-6V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.1% R.O.
Creep(2min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+25oC
Operating temperature -10...+40oC
Temperature shift zero ±0.2% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Aluminum alloy
Cable

AWG32*50mm

(Longer cable upon request)

Wiring code

Red--E+ Black--E-

Green--S+ White--S-

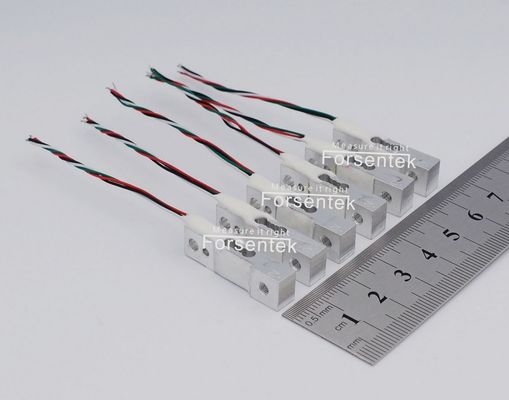

Small size weight sensor 2kg miniature load cell sensor

miniature load sensor
Dimensions

 miniature load sensor


2kg load cell PDF
