| Usage: | Wrench Torque Measurement | Theory: | Square Torque Transducer |
|---|---|---|---|
| Output: | Analog Transducer | Torque Range: | 2kgf.m 5 Kgf*m 10kgf-m 20kgf*m 30 Kgf.m 50kgf-m |
50 kgf.m Square torque sensor 20kgf-m torque transducer 30 kgf*m
Features

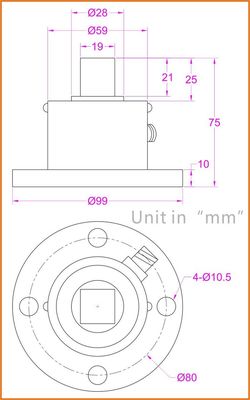

Dimensions(Unit in "mm")
Specifications
| Capacity |
2 kgf.m / 20 NM 5kgf*m / 50 NM 10 kgf-m / 100NM 20 kgf*m / 200 NM 30kgf*m / 300N-M 50 kgf-m / 500 NM |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shieded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
1 inch square torque sensor 2kgf.m 5 kgf*m 10kgf-m 20kgf*m 30 kgf.m 50kgf-m
