Product Details:
Payment & Shipping Terms:
|
| Usage: | Weight Measurement | Theory: | Strain Gauge Load Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 0-300N(0-30kg) |

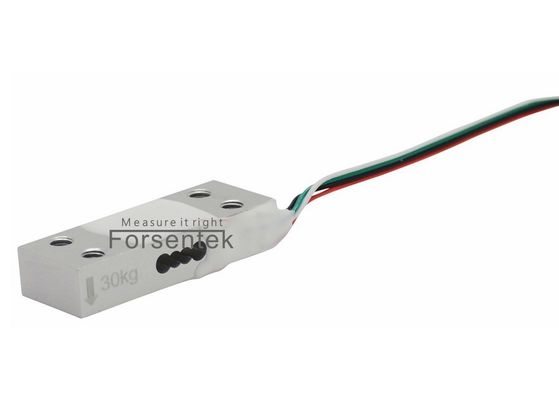

Cheap small load cell 10 lbs 20lbs 30lbs 50 lbs small load sensor
Features
Specifications
| Rated capacity |
5kg / 50N / 11 lb 10kg / 100N / 22 lb 15kg / 150N / 33 lb 20kg / 200N / 44 lb 30kg / 300N / 66 lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.2mV/V |
| Nonlinearity | ±0.1% of R.O. |
| Hysteresis | ±0.1% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(5min) | ±0.1% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 1000±50 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*170mm |
| Wiring code | Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
Cheap small load cell weight transducer FMZU
Dimensions(unit in milimeter)
Ordering code:
FMZU-5kg FMZU-10kg FMZU-15kg FMZU-20kg FMZU-30kg
