Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer

Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer

Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer
Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer

Large Image :  Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FC8E
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3300pcs/month
Detailed Product Description
Usage: Compression Force Measurement Type: Smallese Compression Load Cell
Output: Analog Sensor Capacity: 50N 100N 200N 300N 500N
Sensor Diameter: 8mm

Miniature force sensor 50N 100N 200N 300N 500N

miniature force sensor

Features

  • Stainless steel construction

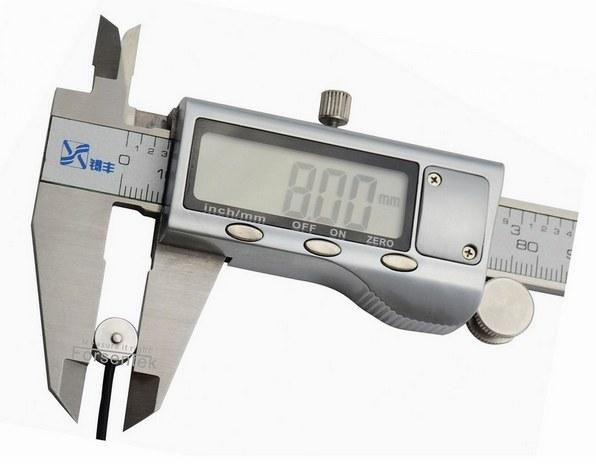

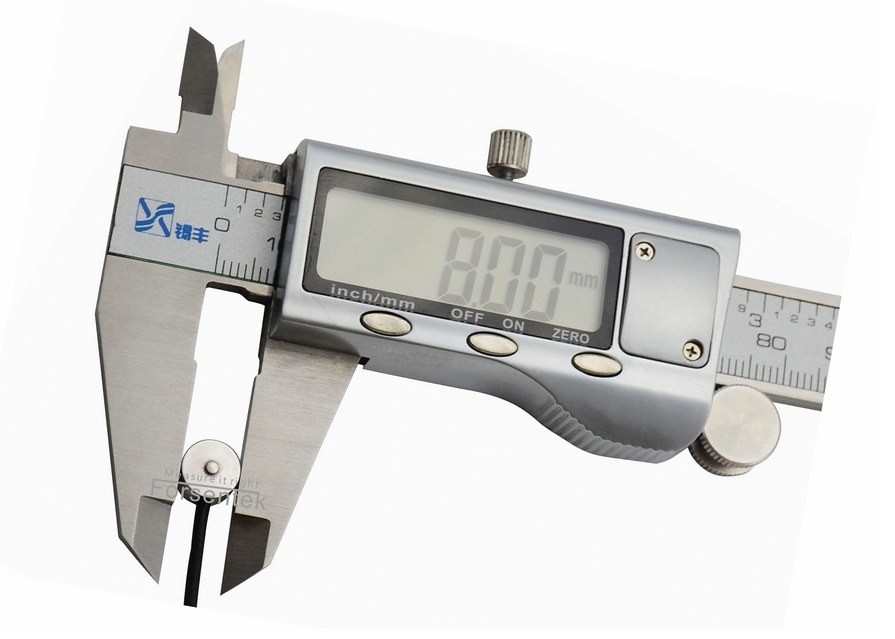

  • Miniature load cell with 8mm outer diameter
  • High output resistance,low heat emmision
  • Compression force measurement

Applications

  • Clamping force measurement
  • Force overload protection
  • Load distribution measurement
  • Pressing die force measurement
  • Auto equipment
  • Medical divices
  • Assembly line


Specifications

Capacity 50N 100N 200N 300N 500N
Rated output 1.0 mV/V
Excitation 3-8V
Zero balance ±0.1mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(5min) ±0.2% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance >500 ohms
Output resistance >500 ohms
Insulation resistance >2000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-


Dimensions(Unit in "mm")
 miniature force sensor 50N 100N 200N 300N 500N
Ordering Code: FC8E-50N    FC8E-100N    FC8E-200N   FC8E-500N

Click here to download datasheet
