Mini load cell|Miniature load cell

China Mini load cell|Miniature load cell supplier

Large Image :  Mini load cell|Miniature load cell

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FC10C

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Usage: Compression Force Measurement Theory: Strain Gauge Load Cell
Output: Analog Sensor Capacity: 5kg 10kg 20kg 30kg 50kg

Mini load cell|Miniature load cell

Features

  • Stainless steel construction
  • Miniature load cell with 10mm outer diameter
  • High output resistance,low heat emmision
  • Compression force measurement

Application

  • Clamping force measurement
  • Force overload protection
  • Load distribution measurement
  • Pressing die force measurement
  • Auto equipment
  • Medical divices
  • Assembly line

miniature load cell
Specifications

Capacity5kg 10kg 20kg 30kg 50kg
Rated output1.0mV/V
Excitation3-10V
Zero balance±0.05mV/V
Nonlinearity±1% R.O.
Hysteresis±1% R.O.
Nonrepeatability±0.5% R.O.
Creep(30min)±0.5% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.05% R.O./oC
Temperature shift span±0.05% R.O./oC
Input resistance>700 ohms
Output resistance>700 ohms
Insulation resistance>2000M ohms
Ingress protectionIP65
Material of elementStainless steel
CableØ2*4000mm
Wiring codeRed--E+ Black--E- Green--S+ White--S-

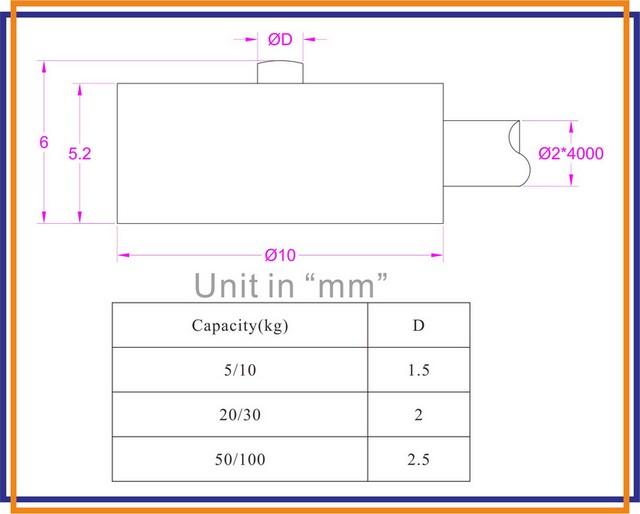

Dimensions
mini load cell

Ordering Code:
FC10C-5kg     FC10C-10kg      FC10C-20kg     FC10C-30kg     FC10C-50kg     FC10C-100kg
